| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
399 pcs
|
399 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Specifications | |
| Termination | |
| Voltage | |
| Voltage Rating |

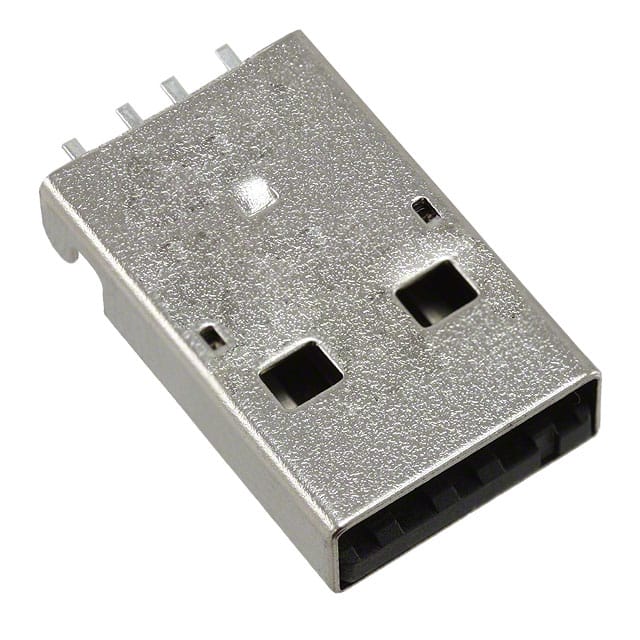

The Molex 0480372200 is a USB-A (USB TYPE-A) plug connector designed for USB 2.0 applications. It features 4 contacts in a single port configuration, with a shielded housing for EMI protection. The connector supports both surface mount and through hole mounting with a right angle orientation, making it suitable for compact PCB layouts where horizontal insertion is required.
Electrical ratings include a current rating of 1.5 A and a voltage rating of 150 V, with an operating temperature range of -20°C to 85°C. The termination method is solder, and the connector includes a board guide feature for alignment during assembly.
This connector is commonly used in consumer electronics, data communication devices, and industrial equipment requiring a standard USB Type-A interface. The shielded design helps maintain signal integrity in noisy environments.
It is a USB-A (USB TYPE-A) plug connector.
It has 4 contacts.
It is USB 2.0.
The current rating is 1.5 A.
The voltage rating is 150 V.
It supports surface mount, right angle and through hole mounting.
Yes, it is shielded.
