| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
895 pcs
|
895 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Style | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage |

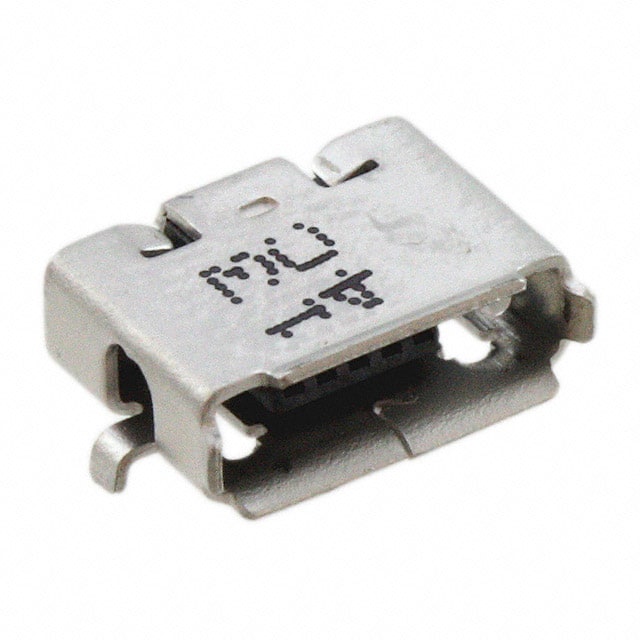

The Molex 0475900001 is a USB micro AB receptacle connector designed for surface mount right angle mounting. It features 5 contacts in a single port, shielded for EMI protection, and includes pick and place and solder retention features for automated assembly. The connector is rated for a current of 1A (per contact) and 1.8A (overall), with a voltage rating of 30VAC. Operating temperature range is -35°C to 85°C, with a mating cycle durability of 10,000 cycles. This connector is suitable for applications requiring USB micro AB connectivity, such as portable devices and data transfer interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.80 | $0.80 |
| 10+ | $0.68 | $0.68 |
| 25+ | $0.63 | $0.63 |
| 50+ | $0.60 | $0.60 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.54 | $0.54 |
| 500+ | $0.51 | $0.51 |
| 1,500+ | $0.52 | $0.52 |
| 3,000+ | $0.49 | $0.49 |
| 4,500+ | $0.48 | $0.48 |
| 7,500+ | $0.46 | $0.46 |
| 10,500+ | $0.45 | $0.45 |
| 15,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 contacts.
1A per contact, 1.8A total.
30VAC.
Surface mount, right angle.
Yes, shielded.
-35°C to 85°C.
10,000 cycles.
