| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,604 pcs
|
1604 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions |

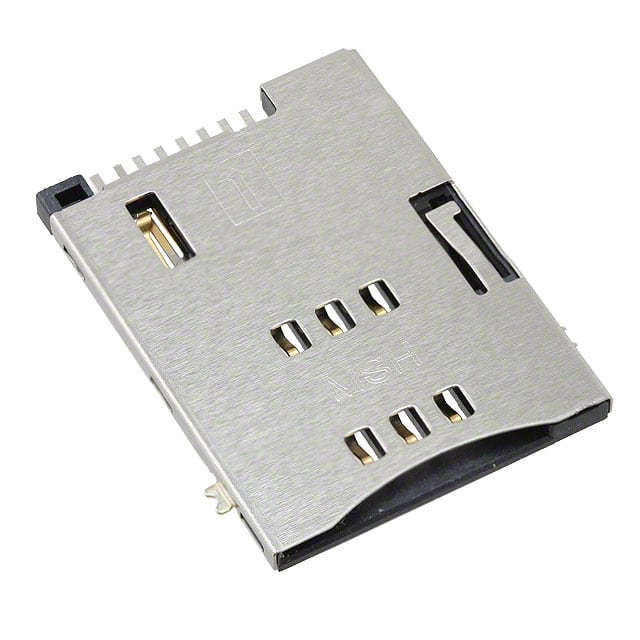

The Molex 0475530001 is a SIM card connector featuring a connector and ejector type designed for SIM cards. It offers 8 positions in a 6+2 configuration with a push-push insertion and removal method. The connector is surface mount right angle with a height above board of 1.80mm (0.071 inches). It includes a card detection switch for added functionality. Contact finish is gold with a thickness of 15.0µin (0.38µm). The mounting feature is normal, standard - top. Compliance with RoHS3, MSL 1, and REACH is indicated but unverified. This connector is suitable for applications requiring a compact, low-profile SIM card interface in mobile devices, IoT modules, and other embedded systems.
8 positions (6+2).
Surface mount, right angle.
Gold with 0.38µm thickness.
Push in, push out (push-push).
Yes, includes a card detection switch.
SIM card.
1.80mm (0.071 inches).
