| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Features | |
| Height Above Board | |
| Insertion, Removal Method | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Positions | |
| Tape & Reel |

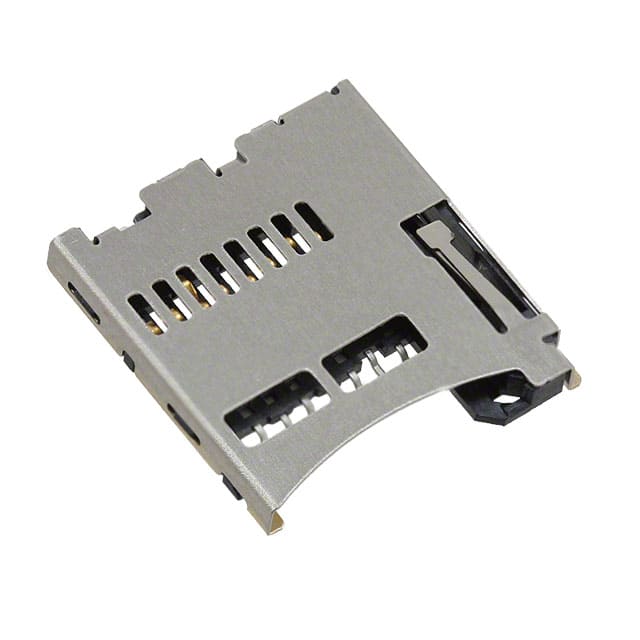

The Molex 0473521001 is a microSD card connector designed for secure digital memory card interfaces. It features a push-push insertion and removal mechanism, allowing easy card installation and ejection. The connector is surface mounted with a right angle orientation, making it suitable for compact PCB layouts.
This connector provides 8 positions (6 + 2) and includes a card detection switch for status monitoring. The contacts are finished with gold for reliable electrical performance and corrosion resistance. The height above board is 1.88mm, enabling low-profile designs.
Typical applications include portable electronics, consumer devices, and any system requiring a removable microSD memory card. The right angle mounting and push-push operation simplify integration into space-constrained enclosures.
This connector supports Secure Digital - microSD™ cards.
It is a surface mount, right angle connector.
It has 8 positions (6 + 2).
The connector uses push in, push out (push-push) mechanism.
The height above board is 0.074" (1.88mm).
Yes, it features a switch for card detection.
The contacts are finished with gold.
