| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Operating Temperature Range | |
| Shielding | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

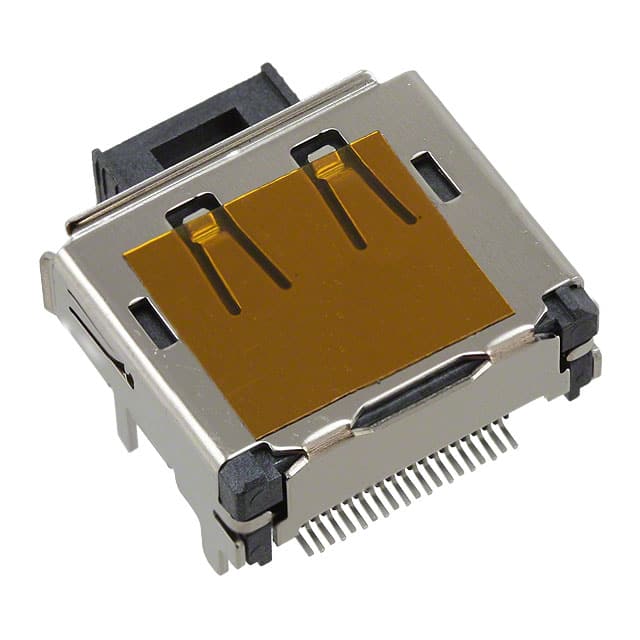

The Molex 0472720024 is a shielded DisplayPort receptacle connector featuring 20 contacts in a right-angle surface mount package. It is rated for 0.5A current and 40VAC voltage, with an operating temperature range of -20°C to 85°C. The connector includes a board guide and latch lock for secure mating, and is designed for horizontal mounting on PCBs. With a durability of 10,000 mating cycles, it is suitable for frequent use in video display applications.
0.5A
40VAC
20
Surface mount, right angle
-20°C to 85°C
Yes
10000 cycles
