| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
251 pcs
|
251 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Termination | |
| Voltage |

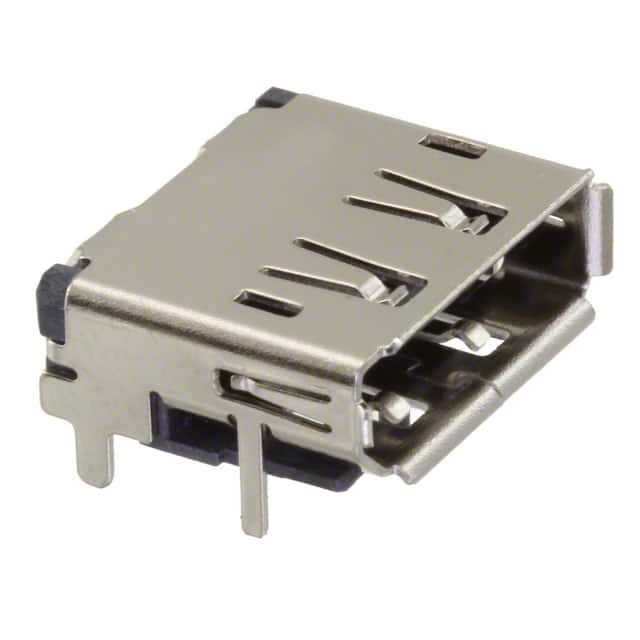

The Molex 0472720001 is a DisplayPort receptacle connector designed for high-speed video and audio transmission. It features 20 contacts in a single port configuration, with a horizontal mounting orientation.
This connector is rated for 0.5 A per contact and 40 VAC, with an operating temperature range of -20°C to 85°C. It is shielded to reduce electromagnetic interference and supports up to 10,000 mating cycles.
The connector includes a board guide for accurate placement during assembly and a latch lock mechanism for secure cable retention. It is terminated via solder and is available in a surface mount, right angle package.
The component is RoHS3 compliant, REACH unaffected, and has an MSL rating of 1 (unlimited).
20 positions.
0.5 A.
40 VAC.
Surface mount, right angle.
DisplayPort.
Yes, it is shielded.
-20°C to 85°C.
