| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature - Maximum | |
| Package / Case | |
| Packaging Type | |
| Response Time | |
| Standard Package Quantity | |
| Tape & Reel | |
| Tape and Reel Specifications | |
| Voltage Rating | |
| Width |

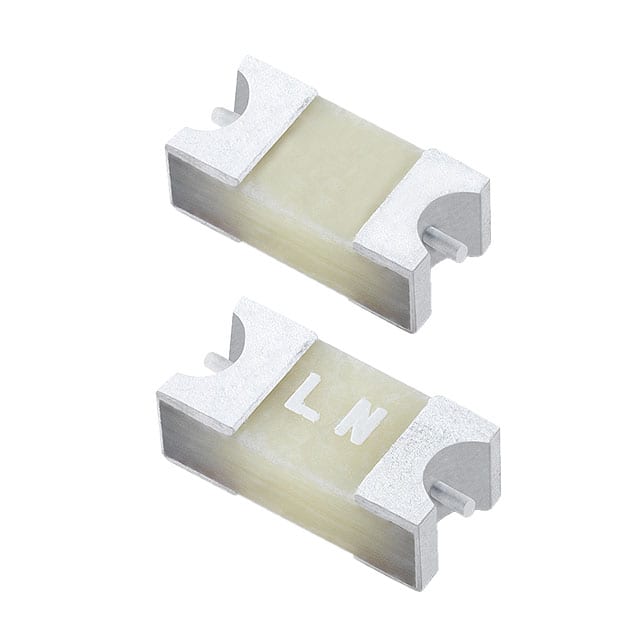

The Littelfuse 0470001.DRSNP is a 1A, 125V fast blow board mount fuse from the 470 series. It is designed for surface mount applications and comes in a compact 1206 (3216 Metric) package. The fuse offers a breaking capacity of 50A at rated voltage and a melting I²t of 0.14785 A²·s.
This fast-acting fuse is suitable for overcurrent protection in space-constrained designs. It operates over a wide temperature range of -55°C to 125°C and is RoHS compliant, halogen-free, and 100% lead-free. The 470 series is commonly used in LED lighting, LCD/LED TVs, notebooks, gaming consoles, battery charging circuits, power supply units, and telecom systems.
The fuse is surface mountable and packaged in tape and reel (8mm tape, EIA-RS-481-1) with a standard package quantity of 1500 pieces. It carries cULus and PSE agency approvals.
The current rating is 1 A.
The voltage rating is 125 V AC/DC.
The breaking capacity is 50 A at rated voltage.
It is a fast blow (fast-acting) fuse.
It comes in a 1206 (3216 Metric) surface mount package.
The operating temperature range is -55°C to 125°C.
Yes, it is RoHS3 compliant, halogen-free, and 100% lead-free.
