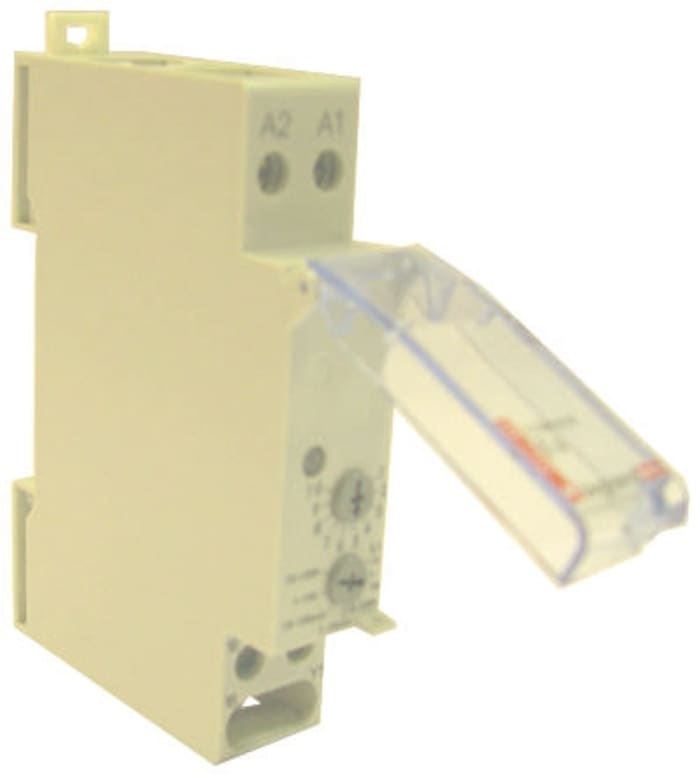

047-40 This Legrand DIN Rail Timer Relay, model 047-40, offers a time range from 0.1 seconds to 100 hours. It features a single function for delaying live voltage supply to a load.
Mfr Part #:

047-40

Available from 1 distributors
Mfr Name: Legrand
Legrand
This Legrand DIN Rail Timer Relay, model 047-40, offers a time range from 0.1 seconds to 100 hours. It features a single function for delaying live voltage supply to a load.
✓ Total Stock: 2 pcs
$ Price Range: $0.99

047-40 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

047-40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Height
Length
Supply Voltage
Switching Voltage
Width
View Similar Products (0)

047-40 Description

Short technical summary and product information.

The Legrand 047-40 is a DIN rail mountable timer relay designed for electrical automation applications. It operates with a supply voltage range of 12 to 230 V dc and 12, 230V ac, and provides a switching voltage of up to 250V ac with a contact current rating of 8A.



This timer relay features a single function, specifically delaying the live voltage supply to a connected load. Its time range is adjustable from a minimum of 0.1 seconds to a maximum of 100 hours, offering flexibility for various timing requirements. The unit is designed for assembly on a standard 35 mm rail (EN50022).



With dimensions of 80mm in length, 70mm in height, and 17mm in width, this timer relay is compact and suitable for installation in control panels. It is manufactured in Germany and adheres to RoHS3 compliance standards.

047-40 Quick Information

Product Type: Timer Relay
Canonical Name: Legrand DIN Rail Timer Relay

047-40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

047-40 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

047-40 Features

  • Single-function timer relay for load voltage delay.
  • Adjustable time range from 0.1s to 100h.
  • 8A contact current and 250V AC switching voltage.
  • Operates on 12-230V DC or 12/230V AC supply.
  • 35mm DIN rail mountable design.

047-40 Applications

  • Used for delaying power to loads.
  • Suitable for industrial control panels.
  • Applicable in automation systems.
  • Facilitates timed switching operations.

047-40 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the time range for this Legrand timer relay?

The time range is adjustable from 0.1 seconds to 100 hours.

What is the contact current rating of the 047-40 timer relay?

The contact current rating is 8A.

What is the switching voltage for this Legrand timer relay?

The switching voltage is 250V ac.

What supply voltages can this timer relay operate on?

It can operate on DC supply voltages from 12 to 230V and AC supply voltages of 12V or 230V.

How is this timer relay mounted?

This timer relay is designed for mounting on a 35 mm rail (EN50022).
