| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

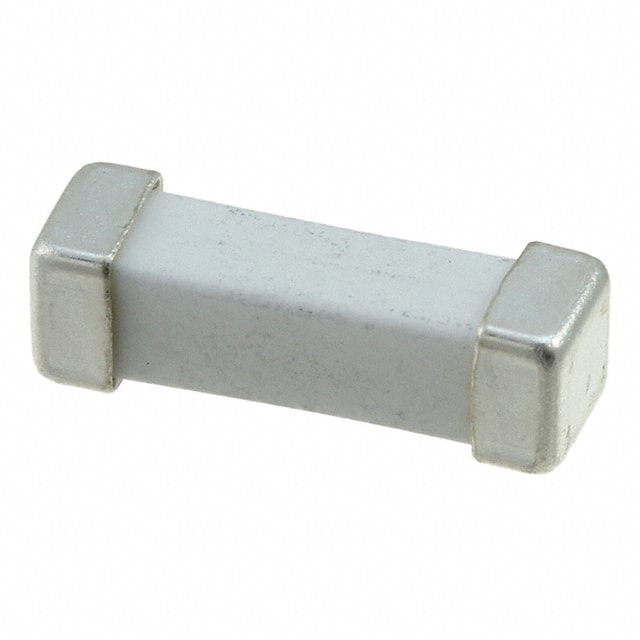

The Littelfuse 463 series NANO2 fuse (MPN 0463030.ER) is a fast-acting surface mount fuse designed for high operating current applications. It is rated at 30A with a voltage rating of 250VAC and 100VDC. The fuse offers a breaking capacity of 100A at 250VAC and 50A at 100VDC.
This fast blow fuse has a nominal melting I²t of 916 A²s and a nominal cold resistance of 0.00193 Ohms. It is housed in a compact 2-SMD square end block package measuring 10.10mm x 3.12mm x 3.12mm, suitable for surface mount assembly.
The device is designed for superior thermal cycling endurance and low temperature rise, making it suitable for datacom and telecom equipment such as high-end servers, base stations, power supplies, and blade computing. Operating temperature range is -55°C to 125°C. The fuse carries cURus approval and is RoHS compliant.
30 A.
250 VAC and 100 VDC.
100A AC at 250VAC and 50A DC at 100VDC.
Fast Blow.
2-SMD, Square End Block.
-55°C to 125°C.
cURus.
