| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
274 pcs
|
274 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
65 pcs
|
65 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Cold Resistance | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| Tape & Reel | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

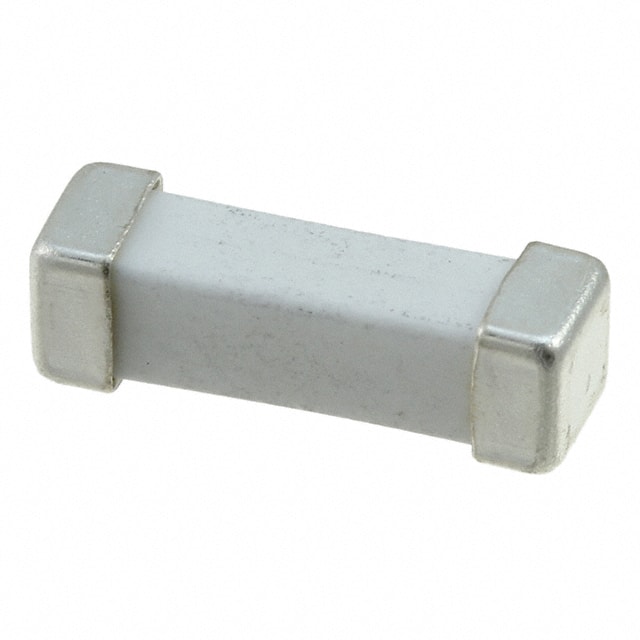

The 0463025.ER is a fast-acting surface mount fuse from Littelfuse's NANO2 463 series, designed for high operating current applications. Rated at 25A, it supports voltage ratings of 250VAC and 100VDC.
The fuse features a breaking capacity of 100A at 250VAC and 50A at 100VDC, with a cold resistance of 0.00215 ohms and a melting I²t of 668 A²s. It is certified cURus and operates across -55°C to 125°C.
Its compact 2-SMD square end block package (10.10mm x 3.12mm x 3.12mm) makes it suitable for space-constrained designs in datacom, telecom, and power supply equipment.
25 A.
250 VAC and 100 VDC.
100 A at 250 VAC and 50 A at 100 VDC.
Fast Blow (fast-acting).
2-SMD, Square End Block surface mount package.
-55°C to 125°C.
