| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request | |
|
1,834 pcs
|
1834 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Width |

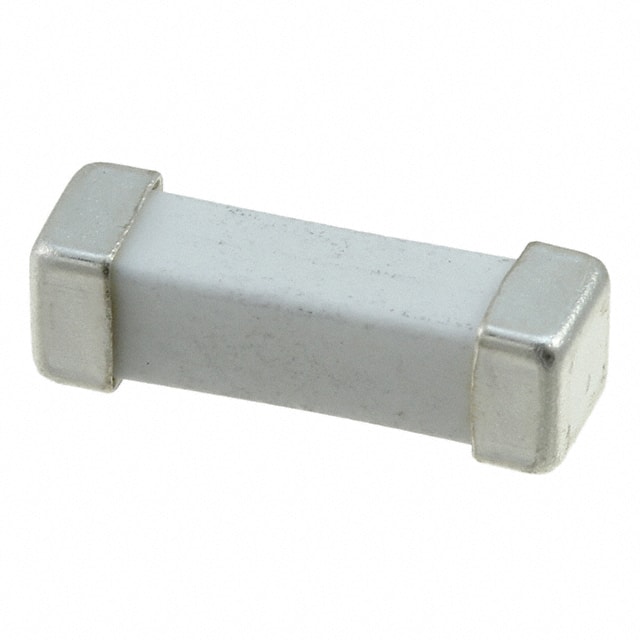

The Littelfuse 0463015.ER is a 15A fast-blow (fast-acting) surface mount fuse from the 463 series of NANO2® fuses. It is designed for high operating current applications and provides reliable overcurrent protection.
Rated for 250VAC and 100VDC, this fuse has a breaking capacity of 100A at 250VAC and 50A at 100VDC. Its nominal melting I²t is 142 A²s and cold resistance is approximately 0.0047 ohms. The operating temperature range is -55°C to 125°C.
The fuse is housed in a 2-SMD, square end block package with dimensions 10.10mm x 3.12mm x 3.12mm. It is surface mountable, suitable for automated assembly.
Typical applications include high-end servers, base stations, power supplies, and blade computing, where high current and high temperature stability are required. It is cURus approved.
15 A.
250 VAC and 100 VDC.
100 A AC at 250 VAC and 50 A DC at 100 VDC.
Fast Blow (fast-acting).
2-SMD, square end block.
142 A²s.
-55°C to 125°C.
