| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
219 pcs
|
219 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable End Type | |
| Connector | |
| Connector/Contact Type | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Halogen Free | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Locking Feature | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Standard Package Quantity | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

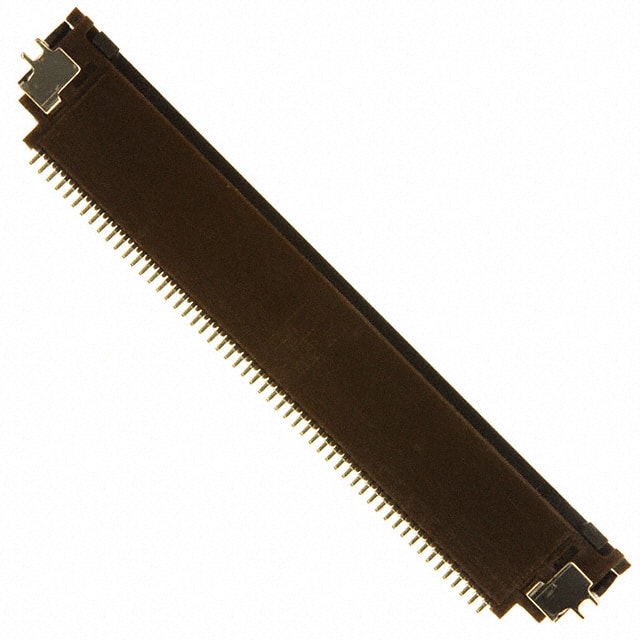

The Kyocera AVX 046240054005800+ is a 54-position FFC/FPC connector from the 6240 series. It features a 0.5mm pitch and a right angle surface mount design with bottom contacts. The connector includes a flip lock mechanism for secure cable retention and zero insertion force (ZIF) for easy insertion. Solder retention features aid in reliable soldering during assembly.
The connector is rated for 50V and operates over a temperature range of -40°C to 85°C. It accepts FFC/FPC cables with a thickness of 0.30mm and a tapered end type. The housing is made of plastic, and contacts are copper alloy with tin copper plating. The height above board is 2.00mm (0.079").
This connector is suitable for compact electronic devices requiring high-density interconnections. It is packaged in tape and reel with a standard quantity of 2000 pieces per reel. The product is marked as RoHS compliant.
54 positions.
0.5mm (0.020").
50V.
Surface mount, right angle.
-40°C to 85°C.
Tin copper.
Flip lock.
