Mfr Part #:

0462076010

Name: 0462076010
Brand: Molex
SKU: 0462076010

Mfr Name: Molex

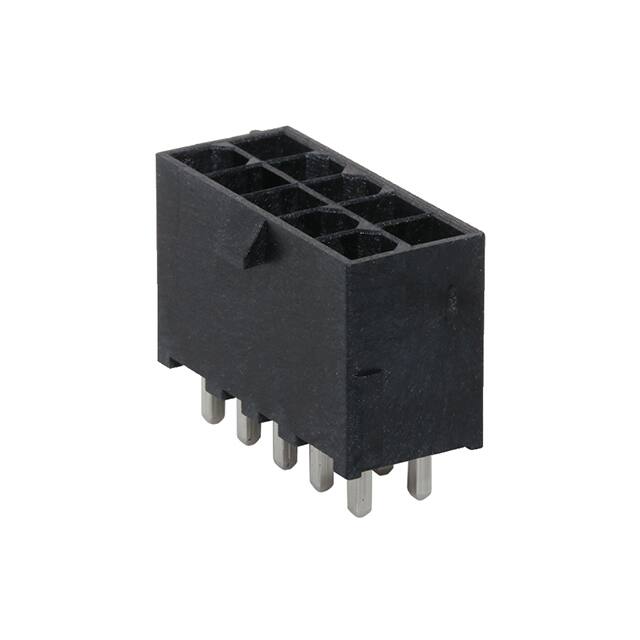

CONN HEADER VERT 10POS 4.2MM

Stock on Request

0462076010 Description

Short technical summary and product information.

CONN HEADER VERT 10POS 4.2MM

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0462075010

Molex

CONN HEADER VERT 10POS 4.2MM

0462075210

Molex

CONN HEADER VERT 10POS 4.2MM

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Length	0.144" (3.66mm)
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.535" (13.60mm)
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.165" (4.20mm)
Row Spacing	0.165" (4.20mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600V
