Mfr Part #:

0447692003

Name: 0447692003
Brand: Molex
SKU: 0447692003

Mfr Name: Molex

Description:

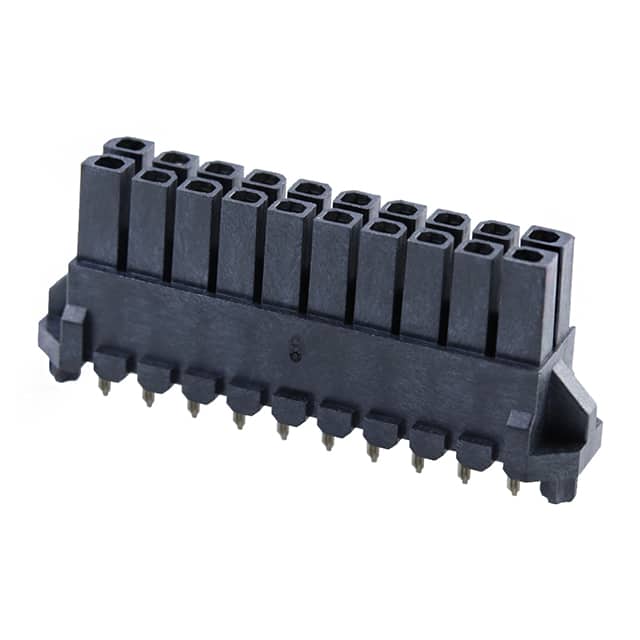

CONN RCPT 20POS 0.118 GOLD PCB

Stock on Request

0447692003 Description

Short technical summary and product information.

CONN RCPT 20POS 0.118 GOLD PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Molex
Connector Type	Receptacle
Contact Finish	Tin
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Length	0.134" (3.40mm)
Contact Type	Female Socket
Current Rating (Amps)	5A
Fastening Type	Push-Pull
Features	Blind Mating, Board Guide
Insulation Color	Black
Insulation Height	0.535" (13.60mm)
Mated Stacking Heights	16.86mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.118" (3.00mm)
Row Spacing	0.118" (3.00mm)
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	250VAC
