| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
185 pcs
|
185 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

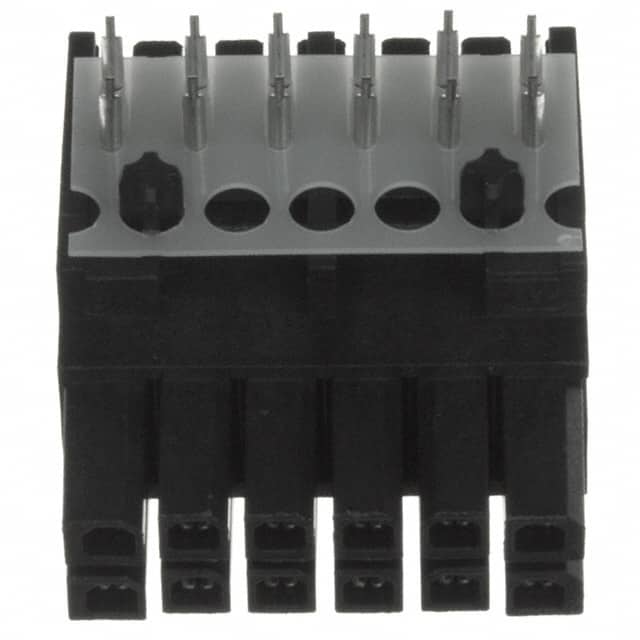

The Molex 0447641201 is a 12-position rectangular connector receptacle designed for board-to-board or cable applications. It features female socket contacts arranged in 2 rows with a 3.00mm pitch and row spacing. The connector uses through hole, right angle mounting with solder termination, making it suitable for PCB designs requiring a low-profile right-angle interface.
The contacts are finished with tin, 40.0µin (1.02µm) thick, providing reliable conductivity. The insulation is black with a height of 10.20mm, and the housing is rated UL94 V-0 for flammability. The connector includes blind mating and board guide features for ease of alignment during assembly. It operates over a temperature range of -40°C to 105°C.
Electrical ratings include 5A current capacity and 600VAC voltage rating. The push-pull fastening type ensures secure mating without additional locking hardware. This connector is suitable for a variety of industrial, consumer, and commercial applications where a compact, right-angle 12-position interconnect is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.11 | $6.11 |
| 10+ | $5.20 | $5.20 |
| 100+ | $4.42 | $4.42 |
| 500+ | $3.94 | $3.94 |
| 1,000+ | $3.75 | $3.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 positions, all loaded, arranged in 2 rows.
3.00mm (0.118 inches).
5A.
600VAC.
Through hole, right angle.
Tin, with 40.0µin (1.02µm) thickness.
-40°C to 105°C.
