| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Design | |
| Frequency Range | |
| Impedance @ Frequency | |
| Inner Dimension | |
| Length | |
| Material | |
| Mounting Type | |
| Outer Dimension | |
| Tape & Reel | |
| Type | |
| Weight |

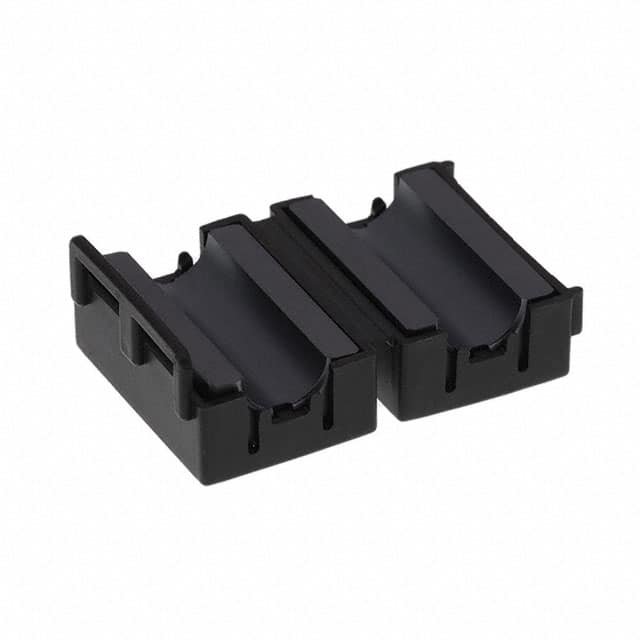

The Fair-Rite 0443167251 is a round cable snap-it ferrite core assembly designed for broadband EMI suppression from 25 MHz to 300 MHz. It is made of Fair-Rite's 43 material, optimized for common-mode and differential-mode conducted interference suppression.
This solid core features a typical impedance of 225 Ohm at 100 MHz, with minimum guaranteed impedance of 180 Ohm (typical -20%). Impedance varies with frequency: 79 Ohm at 10 MHz, 138 Ohm at 25 MHz, 285 Ohm at 250 MHz. The core has an inner diameter of 10.16 mm (0.400 inches) to accommodate round cables or bundled wires.
The assembly is free-hanging and comes with a polypropylene case that meets RoHS restrictions and has a UL 94-V0 flammability rating. Outer dimensions are 22.10 mm x 11.00 mm (0.870" x 0.433") with a length of 32.31 mm (1.272"). Weight is 42 grams.
Typical applications include suppression of EMI on power and signal cables in electronic equipment. The 43 material is effective in the 25-300 MHz frequency range, making it suitable for broadband noise filtering.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.23 | $3.23 |
| 10+ | $2.23 | $2.23 |
| 25+ | $1.88 | $1.88 |
| 50+ | $1.67 | $1.67 |
| 100+ | $1.34 | $1.34 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Yes, it is RoHS3 compliant as per the datasheet.
Typical impedance is 225 Ohm at 100 MHz, with a minimum guaranteed impedance of 180 Ohm.
It uses Fair-Rite 43 material.
Outer dimensions: 22.10 mm x 11.00 mm (0.870" x 0.433"), inner diameter: 10.16 mm (0.400"), length: 32.31 mm (1.272").
It is a free-hanging snap-it design for round cables.
It is designed for broadband suppression from 25 MHz to 300 MHz using 43 material.
It weighs 42 grams.
