| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22 pcs
|
22 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section (Solid) | |
| Conductor Cross Section (Stranded) | |
| Connection Method | |
| Flammability Rating | |
| Height (NS 35/15) | |
| Height (NS 35/7.5) | |
| Insulating Material | |
| Insulating Material Group | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Minimum Order Quantity | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Overvoltage Category | |
| Packing Unit | |
| Pollution Degree | |
| Rated Surge Voltage | |
| Screw Thread | |
| Stripping Length | |
| Terminal | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Weight per Piece (excluding packing) | |
| Width | |
| Wire Gauge (AWG) | |
| Wire Gauge or Range |

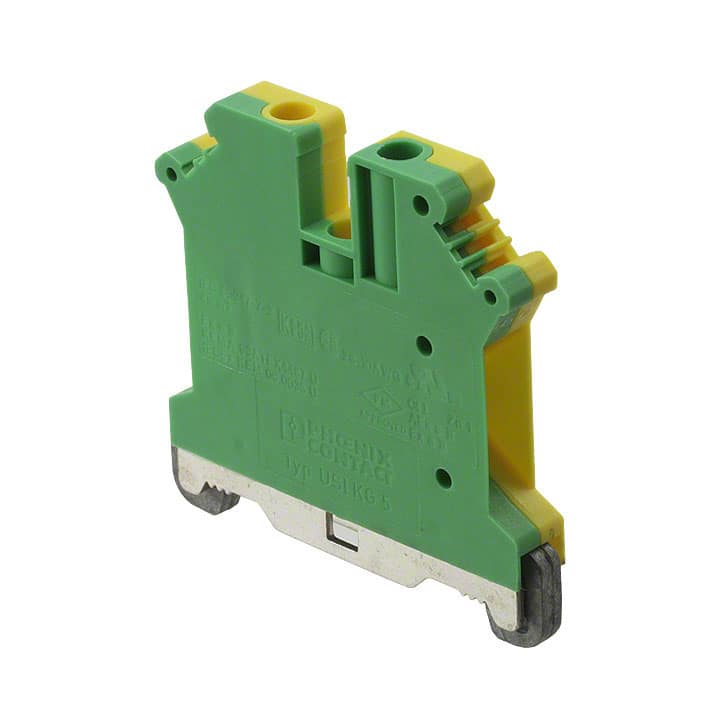

The Phoenix Contact 0441517 is a ground modular terminal block from the USLKG 5-1 series. It features a screw connection method and accepts solid conductors from 0.2 to 6 mm² and stranded conductors from 0.2 to 4 mm², corresponding to 24-10 AWG. The terminal block has 2 positions in a single level and is rated for a surge voltage of 8 kV with overvoltage category III and pollution degree 3.
Constructed with a green-yellow polyamide (PA) housing, it meets UL 94 V0 flammability requirements. The block measures 6.2 mm in width, 42.5 mm in length, and has a height of 47 mm on NS 35/7.5 rail or 54.5 mm on NS 35/15 rail. It mounts on NS 35/15-2,3 DIN rails and uses an M3 screw with a tightening torque of 0.5-0.6 Nm.
This terminal block is designed for grounding applications in industrial control panels and distribution systems. It complies with IEC 60947-7-2 and is suitable for use in environments requiring reliable earth connections.
It accepts 24-10 AWG solid and stranded conductors.
The recommended tightening torque is 0.5-0.6 Nm for the M3 screw.
The polyamide (PA) housing has a UL 94 V0 flammability rating.
The rated surge voltage is 8 kV.
It mounts on NS 35/15-2,3 rail.
