| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18 pcs
|
18 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

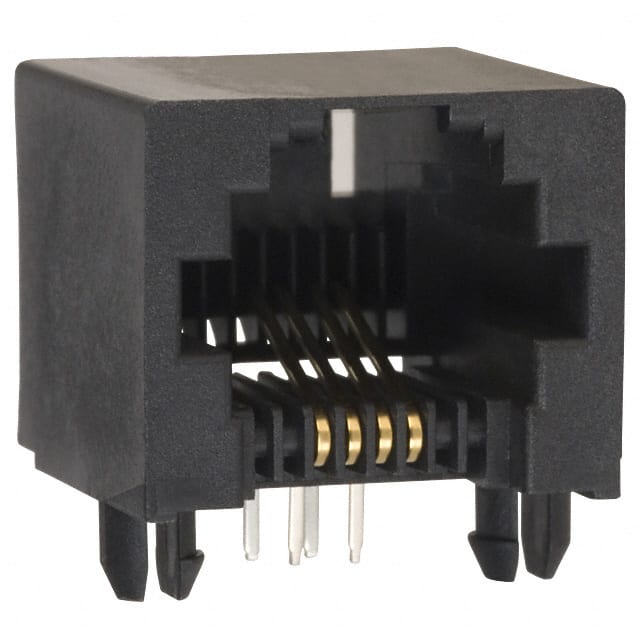

The Molex 0438600003 is a modular connector jack designed for telecommunications and networking applications. It features a 6 position 4 conductor (6P4C) configuration compatible with RJ11 and RJ14 standards. The connector is unshielded and has a right angle (90°) orientation for space-constrained designs. Mounting is through hole with solder termination, ensuring reliable mechanical and electrical connections. The contacts are made of phosphor bronze with a gold finish for corrosion resistance and reliable signal transmission. A board lock feature secures the connector to the PCB during soldering. This jack is rated Category 3, suitable for voice and low-speed data applications. It does not include LEDs. The part is RoHS3 compliant and REACH unaffected, with MSL Level 1 (unlimited).
6 positions, 4 conductors (6P4C), compatible with RJ11 and RJ14.
Through hole.
90° angle (right).
No, it is unshielded.
Gold.
Yes, it includes a board lock.
Category 3 (Cat3).
