| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,339 pcs
|
1339 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination |

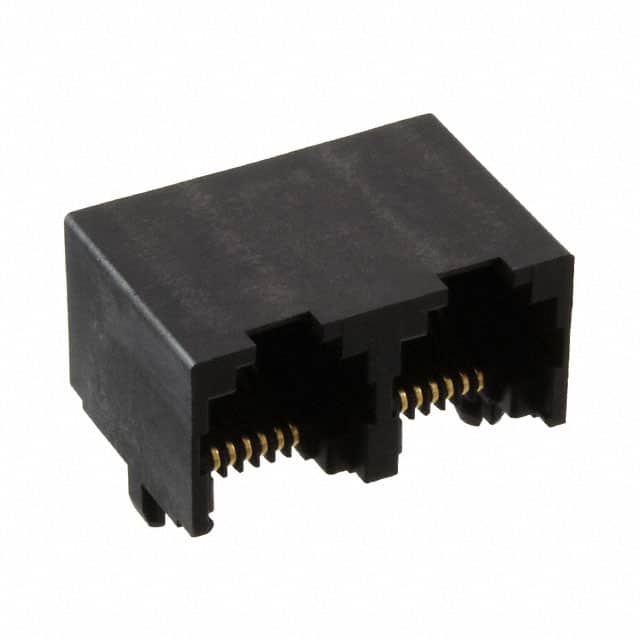

The Molex 0438146621 is a 6-position 6-conductor (6P6C) modular jack connector compatible with RJ11, RJ12, RJ14, and RJ25 standards. It features a right angle (90°) orientation with the tab facing up, and is unshielded for general-purpose telecommunications and data applications.
This connector supports dual ports in a single row, with panel mount and through hole mounting options for secure attachment to a chassis or PCB. Termination is via solder contacts made of phosphor bronze with a gold finish, ensuring reliable electrical connections and corrosion resistance. A board lock feature is included for added mechanical retention during assembly.
Rated for Category 3 (Cat3) performance, this jack is suitable for voice and low-speed data applications. It contains no LED indicators, keeping the design simple and cost-effective. The Molex 0438146621 is an unshielded modular jack designed for use in telecommunication equipment, networking devices, and other applications requiring a standard RJ-style interface.
This is a modular jack connector with 6 positions and 6 conductors (6P6C), compatible with RJ11, RJ12, RJ14, and RJ25.
The connector has 2 ports in a single row.
The mounting type is panel mount and through hole, with right angle (90°) orientation and the tab facing up.
