| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,124 pcs
|
9124 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Approval Agency | |
| Automotive Grade | |
| Breaking Capacity | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| Fuse Type | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Melting I²t | |
| Military Grade | |
| Mounting Type | |
| Nominal Power Dissipation | |
| Nominal Resistance | |
| Nominal Voltage Drop | |
| Operating Temperature | |
| Package / Case | |
| Response Time | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating | |
| Voltage Rating (max) | |
| Width |

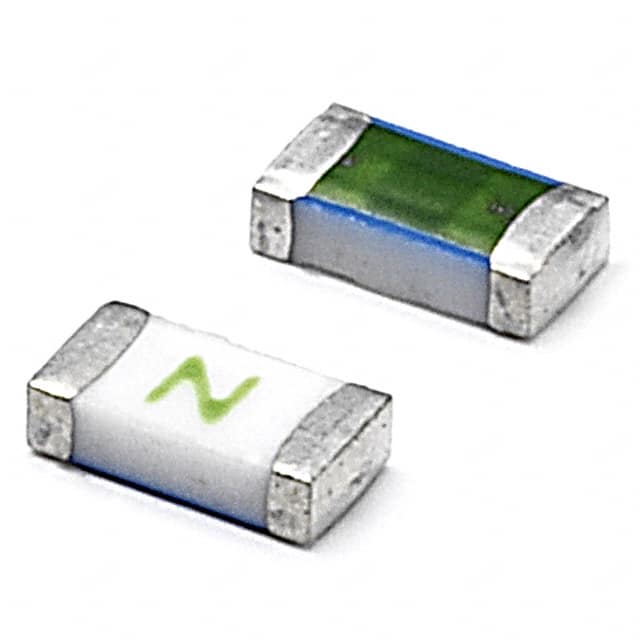

The Littelfuse 0437.250WR is a 1206 fast-acting ceramic fuse from the 437 series, designed for overcurrent protection in circuits with high ambient temperatures up to 150°C. It is rated at 250mA (0.25A) with a maximum voltage of 125VAC/VDC and a breaking capacity of 50A at rated voltage. The fuse offers a melting I²t of 0.003 A²s, nominal resistance of 2.29Ω, voltage drop of 0.78V, and power dissipation of 0.195W at rated current.
This surface mount fuse is housed in a 1206 (3216 metric) package with dimensions 3.20mm x 1.63mm x 0.82mm. It is 100% lead-free, halogen-free, and RoHS compliant, suitable for leaded and lead-free reflow/wave soldering. The operating temperature range is -55°C to 150°C.
Typical applications include overcurrent protection in power supplies, lighting, industrial controls, and automotive electronics where high temperature stability and reliability are required. The fuse is UL recognized (E10480) and CSA certified (29862).
250 mA (0.25 A).
125 VAC/VDC.
50 A at 125 V AC/DC.
Fast blow (fast-acting).
1206 (3216 metric) surface mount.
-55°C to 150°C.
0.003 A²s.
