| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

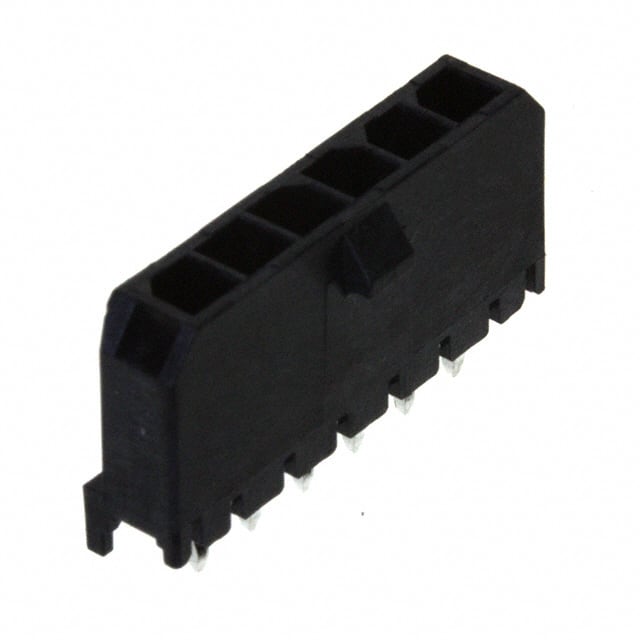

The Molex 0436500615 is a 6-position, single-row header designed for board-to-cable/wire connections. It features male pin contacts with a 3.00mm pitch, making it suitable for compact applications requiring reliable signal or power transmission. The header is through-hole mounted with kinked pin solder termination for secure attachment to the PCB.
The contacts are made of brass with a tin finish of 100µin (2.54µm), providing good conductivity and corrosion resistance. The insulator is black liquid crystal polymer (LCP) glass-filled material, rated UL94 V-0 for flammability. The shrouded 4-wall design with a locking ramp ensures a secure mating connection and prevents accidental disconnection. A board guide feature aids in alignment during assembly.
This component is RoHS3 compliant, REACH unaffected, and has a moisture sensitivity level of 1 (unlimited), indicating no special handling requirements for soldering. The header is suitable for a variety of industrial, automotive, and consumer electronics applications where a robust and reliable interconnect is needed.
6 positions.
3.00mm (0.118 inches).
Through hole.
Tin with 100µin (2.54µm) thickness.
Liquid Crystal Polymer (LCP), glass filled.
Yes, it has a shrouded 4-wall design.
UL94 V-0.
