0436500526 Molex 0436500526 is a 5-position male pin header with 3.00mm pitch, surface mount, and shrouded 4-wall design. It features a locking ramp fastening system and solder retention for secure board-to-cable/wire connections.
Mfr Part #:

0436500526

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0436500526 is a 5-position male pin header with 3.00mm pitch, surface mount, and shrouded 4-wall design. It features a locking ramp fastening system and solder retention for secure board-to-cable/wire connections.
✓ Total Stock: 200 pcs
$ Price Range: $2.34 - $3.58

0436500526 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0436500526 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Pitch
Shrouding
Style
Termination
View Similar Products (0)

0436500526 Description

Short technical summary and product information.

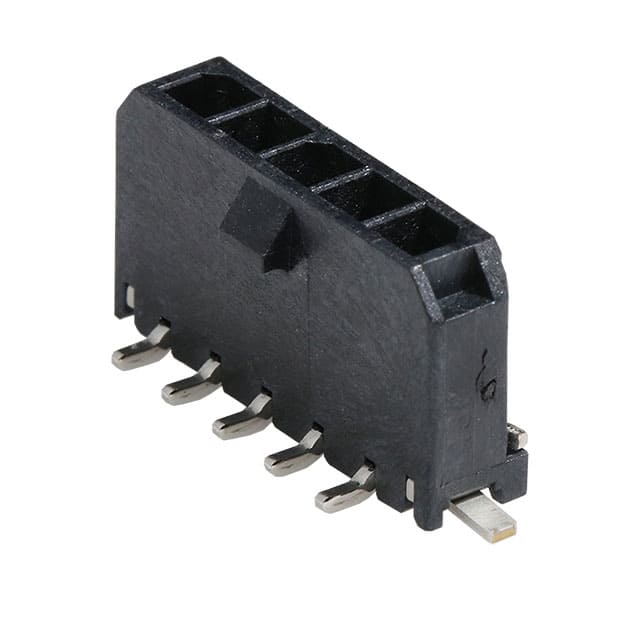

The Molex 0436500526 is a 5-position, single-row male pin header designed for board-to-cable/wire applications. It features a 3.00mm pitch and surface mount (SMT) termination with solder retention for reliable PCB mounting.



The connector is fully shrouded with a 4-wall design, providing protection for the male pins and ensuring secure mating. A locking ramp fastening mechanism prevents accidental disconnection. The contacts are made of brass with a tin finish, offering good conductivity and corrosion resistance.



The insulation is molded from liquid crystal polymer (LCP) with glass filling, rated UL94 V-0 for flammability. The housing is black and has an insulation height of 9.91mm. The part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).

0436500526 Quick Information

Product Type: Header, Male Pins
Series: Micro-Fit 3.0
Canonical Name: Molex 0436500526 - 5 Position Male Pin Header, SMT, 3.00mm Pitch, Shrouded (4-Wall), Board-to-Cable/Wire
Subcategory: Male Pins

0436500526 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0436500526 Estimated Pricing

Qty Low High
1+ $3.58 $3.58
10+ $3.05 $3.05
100+ $2.59 $2.59
200+ $2.75 $2.75
400+ $2.62 $2.62
600+ $2.54 $2.54
1,000+ $2.45 $2.45
1,400+ $2.40 $2.40
2,000+ $2.34 $2.34

Estimated market price range - modelled values for guidance only, not live distributor offers.

0436500526 Features

  • 5 positions, single row, 3.00mm pitch.
  • Surface mount with solder retention.
  • Shrouded 4-wall design with locking ramp.
  • Tin-plated brass square contacts.
  • UL94 V-0 insulation material.

0436500526 Applications

  • Ideal for board-to-cable/wire interconnections.
  • Used in applications requiring secure locking connections.
  • Suitable for surface mount assembly processes.

0436500526 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Molex 0436500526 have?

5 positions, single row.

What is the pitch of this connector?

3.00mm (0.118 inches).

What is the mounting type?

Surface Mount (SMT).

Is the connector shrouded?

Yes, it has a shrouded 4-wall design.

What is the fastening type?

Locking ramp.

What contact material is used?

Brass with tin finish.

Is the 0436500526 RoHS compliant?

RoHS3 Compliant (unverified, low confidence).
