| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
237 pcs
|
237 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

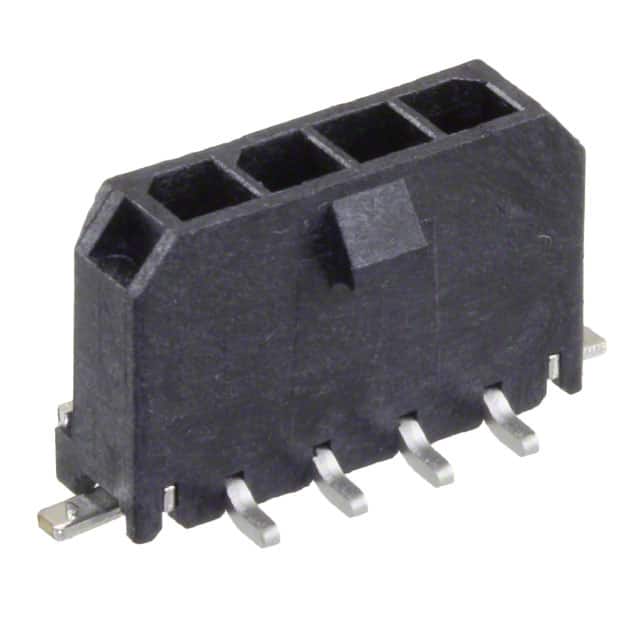

The Molex 0436500425 is a header connector designed for board-to-cable/wire applications. It features 4 positions in a single row with a 3.00mm pitch. The connector is shrouded with 4 walls and includes a locking ramp for secure mating. It is surface mount with solder termination and solder retention feature. The contact material is brass with tin plating (15µin). The insulator is black LCP with glass fill, rated UL94 V-0. This connector is RoHS3 compliant and has MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.22 | $3.22 |
| 10+ | $2.74 | $2.74 |
| 100+ | $2.33 | $2.33 |
| 200+ | $2.54 | $2.54 |
| 400+ | $2.42 | $2.42 |
| 600+ | $2.35 | $2.35 |
| 1,000+ | $2.27 | $2.27 |
| 1,400+ | $2.21 | $2.21 |
| 2,000+ | $2.16 | $2.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4 positions.
3.00mm.
Surface Mount.
Tin, 15.0µin (0.38µm).
Liquid Crystal Polymer (LCP), glass filled.
Locking Ramp.
UL94 V-0.
