| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

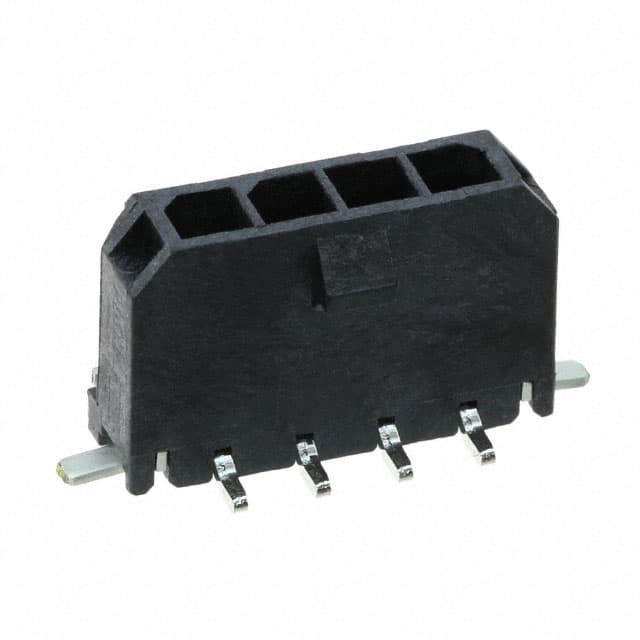

The Molex 0436500424 is a 4-position single row header designed for board-to-cable/wire connections. This surface mount component features a 3.00mm pitch and is fully shrouded with a 4-wall housing for improved mating alignment and protection. The header uses brass male pin contacts with a tin finish (100.0µin thickness) and the housing is molded from black glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. A locking ramp fastening type provides secure mating, while the solder retention feature aids in reliable soldering during assembly. The insulation height is 9.91mm. This component is RoHS3 compliant and has an MSL rating of 1 (Unlimited).
It has 4 positions in a single row, with all positions loaded.
The pitch is 3.00 mm (0.118 inches).
It is a surface mount component with solder termination.
Yes, it features a fully shrouded 4-wall design.
Contacts are made of brass with a tin finish of 100.0 microinches (2.54 micrometers).
The insulator material is glass-filled LCP with a UL94 V-0 rating.
