| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

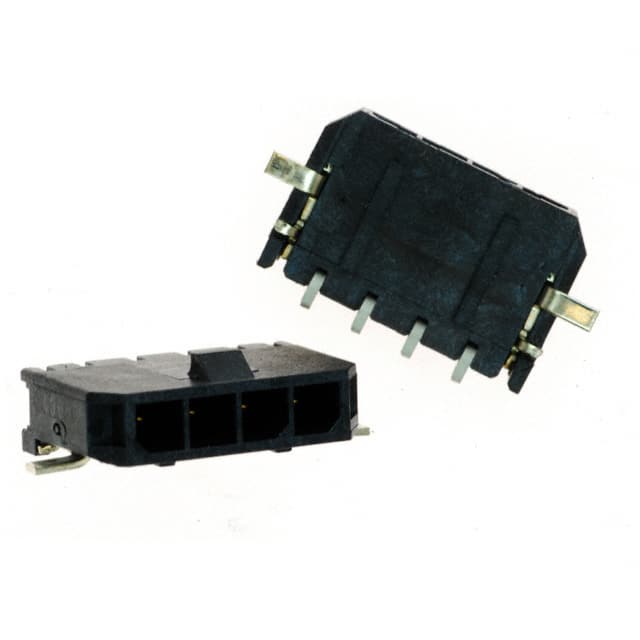

The Molex 0436500413 is a 4-position, single row header from the board-to-cable/wire style connectors. It features male pin contacts made of brass with a tin finish (15.0µin thickness) and a square contact shape. The header is fully shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating. The insulation is made of liquid crystal polymer (LCP) glass filled in black color and has a height of 4.37mm. This connector is surface mount, right angle, and uses solder termination with solder retention features. It meets UL94 V-0 flammability rating.
The pitch is 3.00mm.
It has 4 positions, all loaded, in a single row.
Surface Mount, Right Angle.
Yes, it is shrouded with a 4-wall design.
The contacts are brass with a tin finish of 15.0µin (0.38µm).
The insulator is liquid crystal polymer (LCP), glass filled, with a UL94 V-0 rating.
