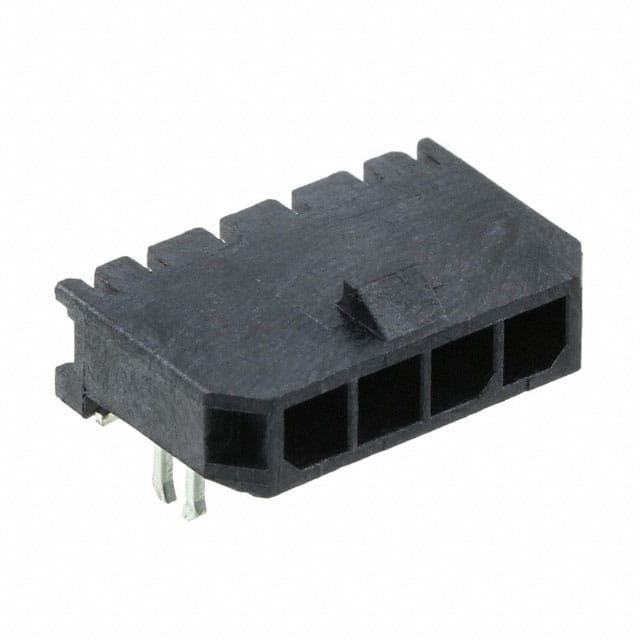

The Molex 0436500409 is a 4-position, single-row, 3.00mm pitch header designed for board-to-cable/wire applications. It features a surface mount, right angle mounting style with solder termination. The connector is shrouded with a 4-wall design to protect the male pin contacts and includes a locking ramp for secure mating with corresponding receptacles. A board lock feature ensures reliable retention during soldering and use.
The male pin contacts are made of brass with a tin finish (1.52µm thickness) for good conductivity and corrosion resistance. The housing is molded from black, glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, making it suitable for environments requiring flame retardancy. The insulation height is 4.37mm, and the contact shape is square.
This header is part of Molex's connector portfolio and is commonly used in applications where a reliable, space-saving wire-to-board connection is needed. The 3.00mm pitch provides a balance between density and ease of handling. The part is RoHS3 compliant and REACH unaffected, though these statuses are unverified.
This header has 4 positions in a single row.
The pitch is 3.00mm (0.118 inches).
It is surface mount with right angle orientation.
The contacts are made of brass with a tin finish.
The insulation is black liquid crystal polymer (LCP) glass filled.
The housing is rated UL94 V-0.
Yes, it has a locking ramp for secure mating.
