| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

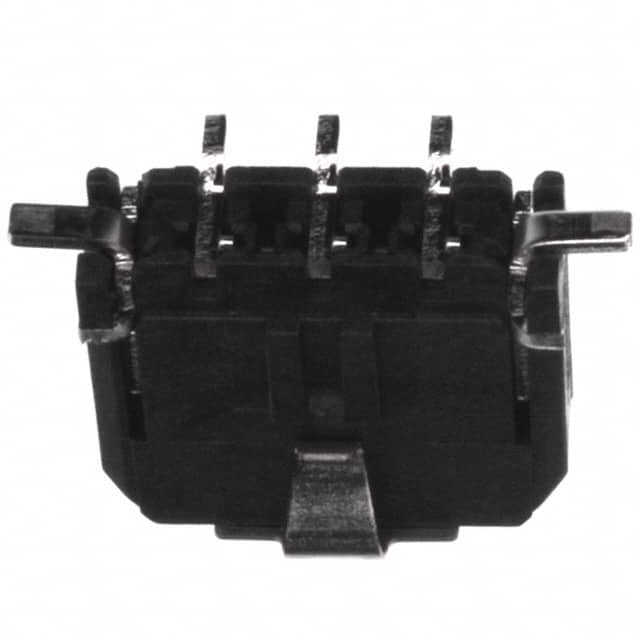

The Molex 0436500324 is a 3-position, single row, 3.00mm pitch shrouded header designed for board-to-cable/wire applications. It features a 4-wall shrouding that provides robust mechanical protection and alignment for mating connectors. The header utilizes a locking ramp fastening type to ensure a secure connection. Contacts are square male pins made of brass with a tin finish, providing reliable conductivity and solderability. The contact finish thickness is 2.54µm for durability.
The insulator is constructed from black Liquid Crystal Polymer (LCP) glass-filled material, rated UL94 V-0 for flammability, offering good dimensional stability and high-temperature resistance suitable for reflow soldering. The component is surface mount (SMT) with solder termination and features solder retention for improved board-level reliability. With an insulation height of 9.91mm, this header accommodates standard cable mating heights. The component is RoHS3 compliant and has an MSL of 1 (unlimited).
Three positions in a single row.
3.00mm (0.118 inches).
Surface Mount (SMT) with solder termination.
