| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

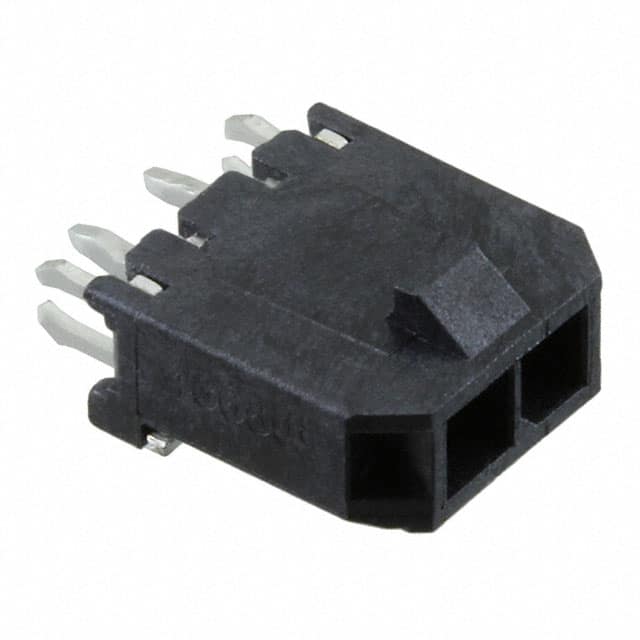

The Molex 0436500219 is a 2-position header designed for board-to-wire applications. It features a 3mm pitch and a vertical mounting orientation with a through-hole termination style. The header is shrouded with a 4-wall design for protection and polarization.
Constructed with Liquid Crystal Polymer (LCP), Glass Filled insulation in black, this header offers durability and a UL94 V-0 flammability rating. The male pin contacts are made of brass with a tin finish and have a kinked pin termination suitable for soldering. The insulation height is 9.91mm.
Key electrical specifications include a contact material of brass and a contact finish of tin. The contact finish thickness is 0.38µm. The termination type is kinked pin, solder, and it includes a board lock feature for secure mounting.
This header is suitable for various electronic applications requiring reliable wire-to-board connections. Its robust construction and specific features make it a component for designs needing secure and protected connections.
The Molex 0436500219 header has 2 positions.
The pitch of the Molex 0436500219 header is 3.00mm (0.118").
The Molex 0436500219 header has a through hole mounting type.
The contact material is Brass and the contact finish is Tin.
The insulation material is Liquid Crystal Polymer (LCP), Glass Filled and the insulation color is Black.
The material flammability rating is UL94 V-0.
The termination style is Kinked Pin, Solder.
