| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

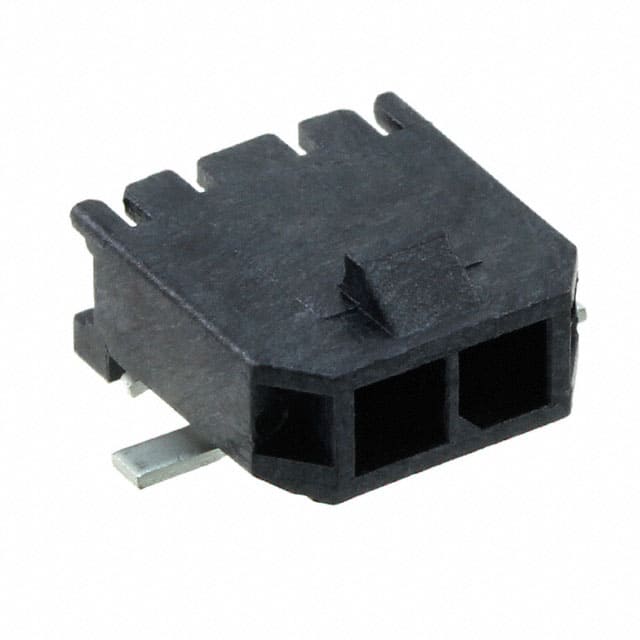

The Molex 0436500212 is a 2-position, single-row shrouded header designed for board-to-cable/wire applications. It features a 3.00mm pitch and male square pins with a tin contact finish of 60.0µin (1.52µm) over brass contact material. The connector is fully shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating.
The header is surface mount, right angle, with solder termination and solder retention features. The insulator is black liquid crystal polymer (LCP) glass filled, rated UL94 V-0 for flammability. The contact finish thickness is 60.0µin (1.52µm) tin. The part is supplied in tape and reel packaging.
It has 2 positions in a single row.
The pitch is 3.00mm (0.118 inches).
Surface mount, right angle.
Tin finish, 60.0µin (1.52µm) over brass contact material.
Yes, it is a 4-wall shrouded header with a locking ramp fastening type.
