| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
320 pcs
|
320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination |

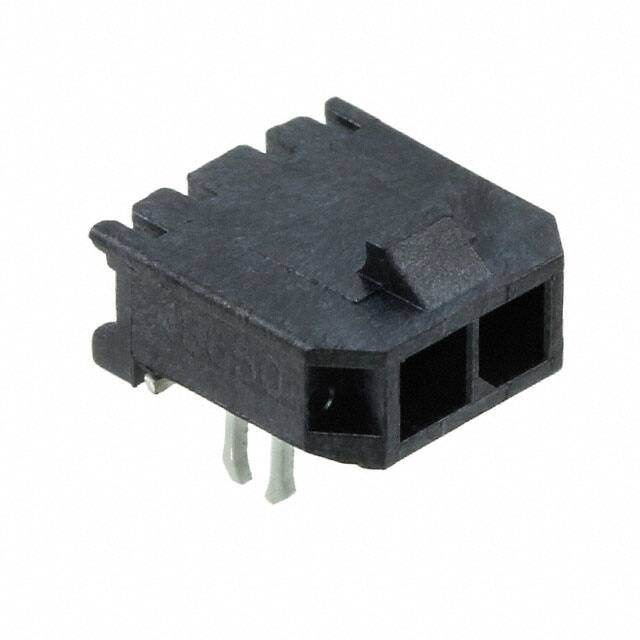

The Molex 0436500209 is a 2-position, single-row, male pin header designed for surface-mount right-angle assembly. It features a fully shrouded 4-wall design with a locking ramp fastening system for secure mating with cable housings. The insulator is molded from black, glass-filled Liquid Crystal Polymer (LCP) rated UL94 V-0 for flammability resistance. Contacts are square-shaped brass with a full tin plating of 60.0µin (1.52µm) for reliable soldering and corrosion protection.
With a 3.00mm pitch and board lock feature, this connector is suited for board-to-cable/wire applications requiring a compact, secure interface. The 1-row, 2-position layout supports space-constrained designs. All positions are loaded.
The connector is offered in multiple packaging options including Tape & Reel, Cut Tape, and Digi-Reel, accommodating different production volumes. The RoHS and REACH compliance have low confidence and should be verified from official manufacturer documentation. No electrical ratings (current, voltage) or operating temperature range are provided in the available data.
The pitch is 3.00mm.
Surface Mount, Right Angle.
It has 2 positions in a single row (1 row).
The insulator is glass-filled Liquid Crystal Polymer (LCP) with a UL94 V-0 rating.
The contact finish is tin with a thickness of 60.0µin (1.52µm).
