| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
172 pcs
|
172 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| LED Color | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Termination | |
| Termination Style |

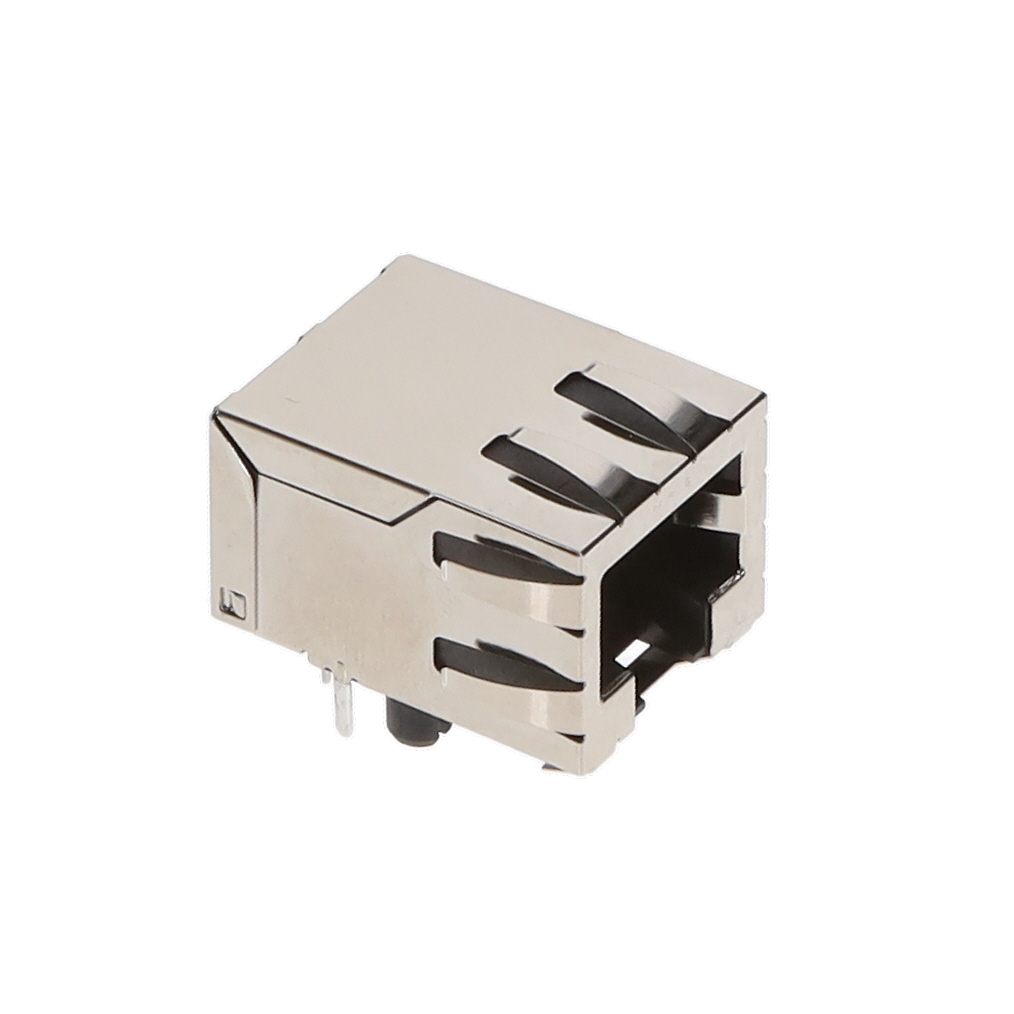

The Molex 0432498927 is a modular jack designed for 8P8C (RJ45) connectors, commonly used in Ethernet networking applications. This jack features a right angle (90°) orientation for space-saving mounting on PCBs, and is shielded with an EMI finger to reduce electromagnetic interference. The through hole mounting style with solder termination ensures reliable mechanical and electrical connections. Contacts are made of phosphor bronze with a gold finish for corrosion resistance and reliable signal transmission. The jack includes a board lock feature for secure attachment to the PCB. It is rated for Category 4 (Cat4) performance, suitable for data transmission up to 20 MHz. This jack does not include an LED indicator. It is RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited). Typical applications include network interface cards, routers, switches, and other communication equipment. The shielded design helps maintain signal integrity in noisy environments. It is packaged in a through hole configuration with solder termination, making it compatible with standard wave soldering processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.42 | $4.42 |
| 10+ | $3.76 | $3.76 |
| 25+ | $3.52 | $3.52 |
| 50+ | $3.35 | $3.35 |
| 100+ | $3.19 | $3.19 |
| 480+ | $2.86 | $2.86 |
| 960+ | $2.72 | $2.72 |
| 1,440+ | $2.65 | $2.65 |
| 2,880+ | $2.52 | $2.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
8 positions (8P8C, RJ45).
Right angle (90°).
Yes, shielded with EMI finger.
Through hole.
Solder.
Phosphor bronze with gold finish.
Yes, it includes a board lock feature.
