| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

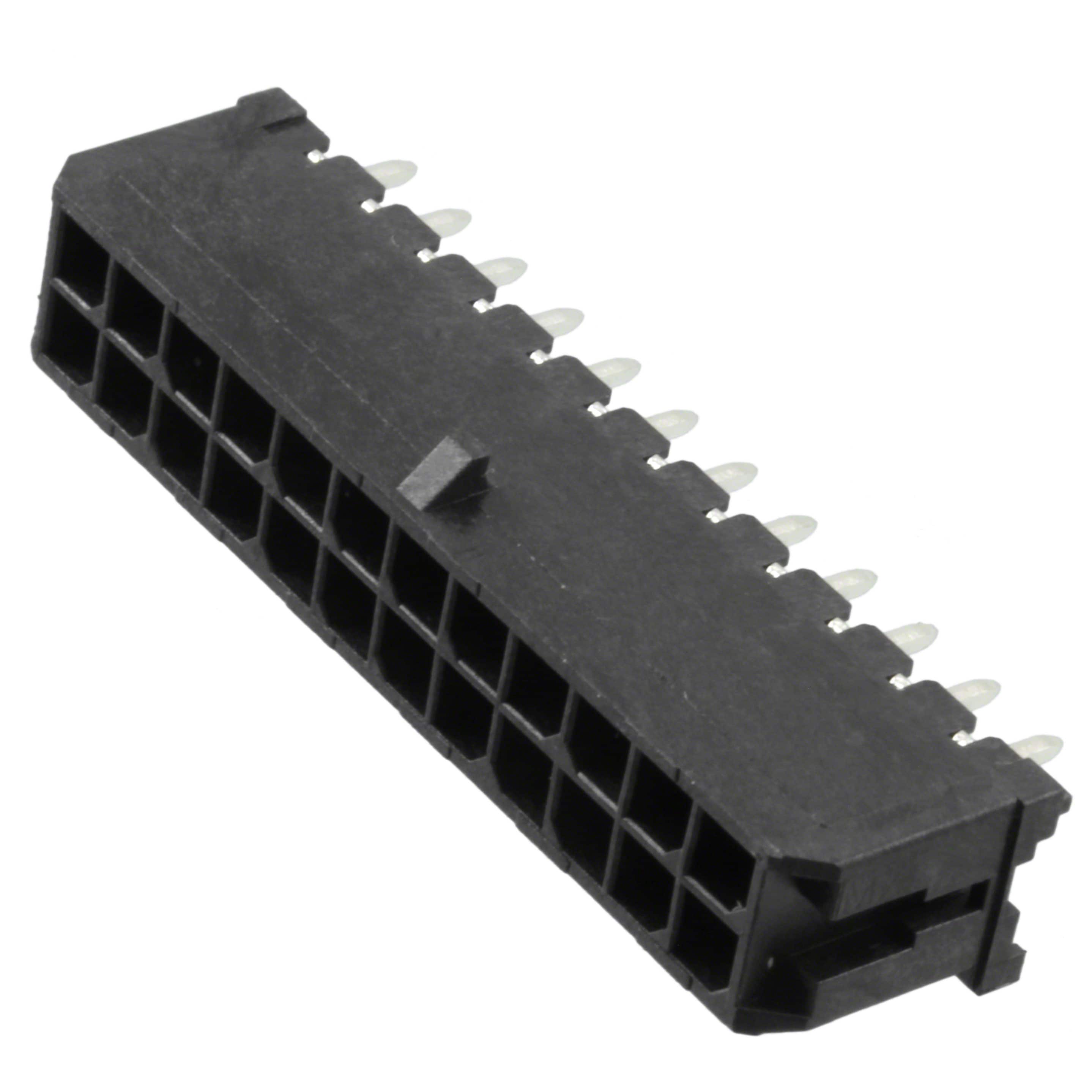

The Molex 0430452427 is a 24-position, 2-row shrouded header connector designed for board-to-cable/wire applications. It features a 3.00mm pitch and 0.118" row spacing, with all positions loaded. The header uses male square pins made of brass with a tin contact finish of 60.0µin (1.52µm). The mating contact length is 3.18mm.
The connector is housed in a black liquid crystal polymer (LCP) insulation, glass filled, with an insulation height of 9.91mm. It is fully shrouded with a 4-wall design and includes a locking ramp fastening type for secure mating. A board guide feature aids in alignment during assembly.
Rated for 8A current and 600V voltage, the header operates over a temperature range of -40°C to 105°C. The insulation material has a UL94 V-0 flammability rating. Mounting is through hole with solder termination, suitable for standard PCB assembly processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.97 | $5.97 |
| 10+ | $5.08 | $5.08 |
| 25+ | $4.76 | $4.76 |
| 50+ | $4.53 | $4.53 |
| 100+ | $4.31 | $4.31 |
| 250+ | $4.04 | $4.04 |
| 576+ | $3.81 | $3.81 |
| 1,152+ | $3.63 | $3.63 |
| 2,880+ | $3.40 | $3.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
