Mfr Part #:

0430452401

Name: 0430452401
Brand: Molex
SKU: 0430452401

Mfr Name: Molex

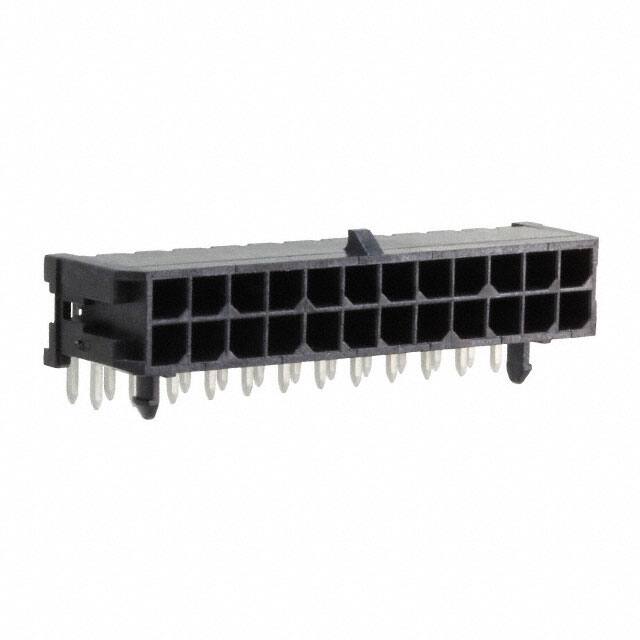

CONN HEADER R/A 24POS 3MM

Stock on Request

0430452401 Description

Short technical summary and product information.

CONN HEADER R/A 24POS 3MM

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0430452501

Molex

MICROFIT3.0 VERT TH 15AU 24CKT S

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	15.0碌in (0.38碌m)
Contact Length	0.125" (3.18mm)
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.118" (3.00mm)
Row Spacing	0.118" (3.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600V
