| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
197 pcs
|
197 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

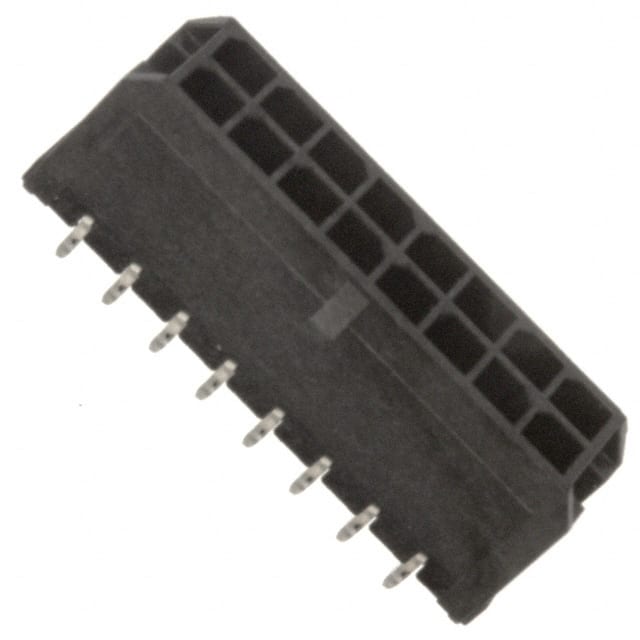

The Molex 0430451613 is a 16-position, 2-row, 3.00mm pitch shrouded header designed for board-to-cable/wire applications. This male pin connector features a through-hole mounting style with kinked pin solder termination, ensuring reliable mechanical and electrical connections. The square brass contacts are tin-plated with a thickness of 15.0µin (0.38µm), providing good conductivity and corrosion resistance.
The header is fully shrouded with a 4-wall design, offering robust protection during mating. A locking ramp fastening type secures the connection, and a board guide feature aids alignment during assembly. The insulation is made from black liquid crystal polymer (LCP) filled with glass, rated UL94 V-0 for flammability. The operating temperature range is -40°C to 105°C, suitable for industrial environments. Electrical ratings include 8A current and 600V voltage. The contact length is 3.18mm, and all 16 positions are loaded.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.89 | $3.89 |
| 10+ | $3.30 | $3.30 |
| 100+ | $2.81 | $2.81 |
| 792+ | $2.42 | $2.42 |
| 1,584+ | $2.31 | $2.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions, all loaded.
3.00mm (0.118").
8A per contact.
600V.
Through Hole with kinked pin solder termination.
-40°C to 105°C.
Liquid Crystal Polymer (LCP), glass filled, rated UL94 V-0.
