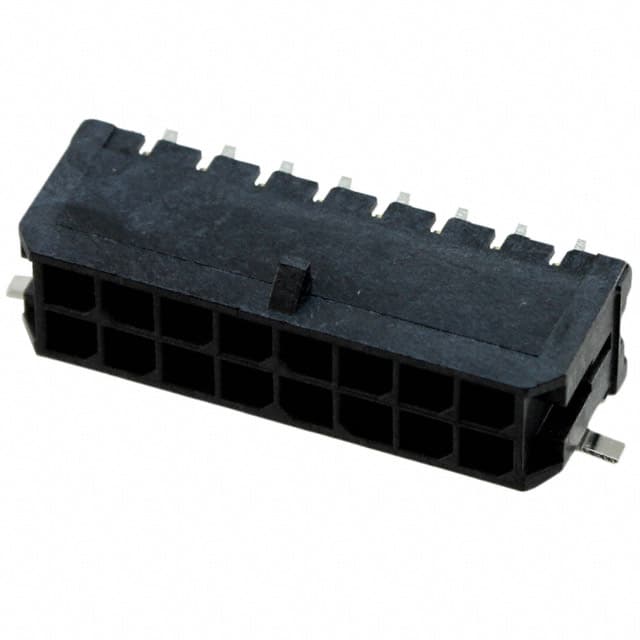

0430451609 Molex 0430451609 is a 16-position, 2-row, 3mm pitch header with surface mount right angle termination. It features a shrouded 4-wall design with locking ramp and solder retention.
Mfr Part #:

0430451609

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0430451609 is a 16-position, 2-row, 3mm pitch header with surface mount right angle termination. It features a shrouded 4-wall design with locking ramp and solder retention.
✓ Total Stock: 118 pcs
$ Price Range: $4.55 - $6.98

0430451609 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
118 pcs
On Request
118 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0430451609 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

0430451609 Description

Short technical summary and product information.

The Molex 0430451609 is a 16-position, 2-row rectangular header designed for board-to-cable/wire applications. It features a 3.00mm pitch and surface mount right angle termination, making it suitable for compact, space-constrained designs. The header is shrouded with a 4-wall design and includes a locking ramp for secure mating with compatible receptacles. The contact material is brass alloy with a tin finish (60µin thickness), and the insulation is black liquid crystal polymer (LCP) glass filled with a UL94 V-0 flammability rating. Electrical ratings include a voltage rating of 600V, with current rating varying by wire gauge. The operating temperature range is -40°C to 105°C. The solder retention feature aids in reliable reflow soldering during assembly.

0430451609 Quick Information

Product Type: Header
Series: Micro-Fit 3.0
Canonical Name: Molex 0430451609 - 16 Position 3mm Pitch SMD Right Angle Header, Male Pins
Subcategory: Board to Cable/Wire

0430451609 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0430451609 Estimated Pricing

Qty Low High
1+ $6.98 $6.98
10+ $5.94 $5.94
100+ $5.04 $5.04
200+ $5.35 $5.35
400+ $5.10 $5.10
600+ $4.96 $4.96
1,000+ $4.78 $4.78
1,400+ $4.67 $4.67
2,000+ $4.55 $4.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

0430451609 Features

  • 16 positions in 2 rows with 3mm pitch.
  • Surface mount right angle termination for compact designs.
  • Shrouded 4-wall housing with locking ramp.
  • Rated for 600V voltage and -40°C to 105°C.
  • Solder retention for reliable reflow soldering.

0430451609 Applications

  • Board-to-wire cable connections in industrial equipment.
  • Automotive electronics requiring reliable locking.
  • Consumer electronics with space-constrained layouts.
  • Power distribution in control panels.

0430451609 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

16 positions.

What is the pitch?

3.00mm (0.118").

What is the voltage rating?

600V.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Tin with 60µin (1.52µm) thickness.

What is the flammability rating?

UL94 V-0.
