| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

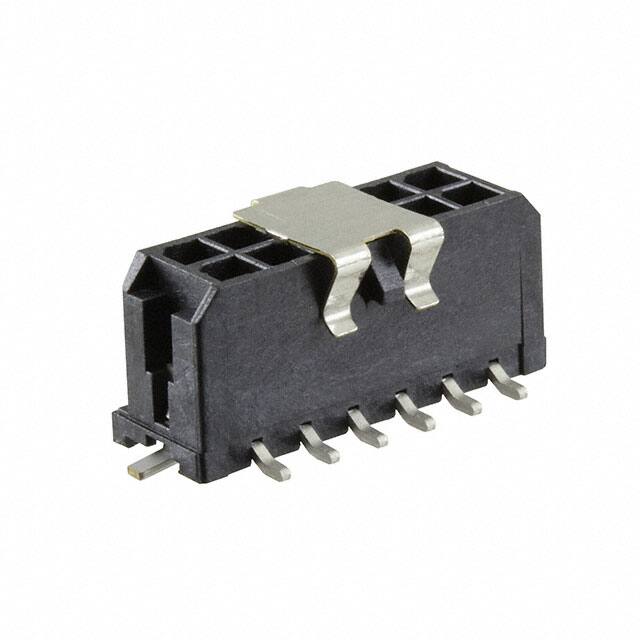

The Molex 0430451219 is a 12-position, 2-row, shrouded header connector with a 3.00mm pitch and 3.00mm row spacing, designed for board-to-cable/wire interconnections. It features a 4-wall shrouded housing for robust mating and contact protection. The male pin contacts are made of brass with a tin finish, providing reliable electrical performance.
With a current rating of 8A and a voltage rating of 600V, this connector is suitable for power and signal applications. The operating temperature range is -40°C to 105°C, making it adaptable to various environments. The insulation material is Liquid Crystal Polymer (LCP) glass filled, rated UL94 V-0 for flammability resistance.
The connector is surface mount with solder termination and includes solder retention features for secure board attachment. The fastening type is a locking ramp, ensuring a secure connection with the mating header. The housing is black, and all 12 positions are loaded.
The pitch is 3.00mm.
The current rating is 8A.
The voltage rating is 600V.
Surface mount with solder termination.
12 positions, all loaded, in 2 rows.
-40°C to 105°C.
