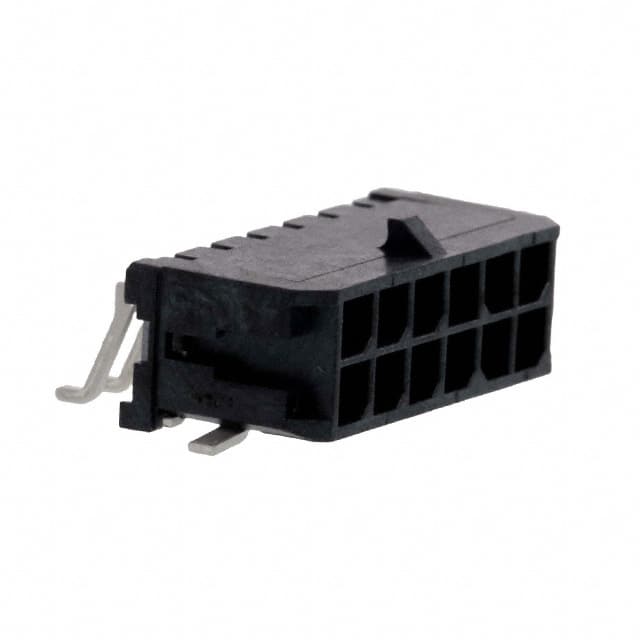

0430451210 Molex 0430451210 is a 12-position, 3.00mm pitch, surface mount right angle header connector. It features a shrouded 4-wall design with locking ramp and solder retention.
Mfr Part #:

0430451210

Available from 1 distributors
Mfr Name: Molex
Molex
Molex 0430451210 is a 12-position, 3.00mm pitch, surface mount right angle header connector. It features a shrouded 4-wall design with locking ramp and solder retention.
✓ Total Stock: 64 pcs
$ Price Range: $4.16 - $6.22

0430451210 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
64 pcs
On Request
64 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0430451210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

0430451210 Description

Short technical summary and product information.

The Molex 0430451210 is a 12-position header connector designed for board-to-cable/wire applications. It features a 3.00mm pitch and 2 rows of male pins, with all positions loaded. The connector is surface mount with a right angle orientation, making it suitable for space-constrained designs. The housing is made of liquid crystal polymer (LCP) with glass filling, rated UL94 V-0 for flammability. Contacts are brass alloy with tin plating (15.0µin). The connector includes a shrouded 4-wall design and a locking ramp for secure mating. Solder retention features ensure reliable attachment during assembly. Operating temperature range is -40°C to 105°C, with a voltage rating of 600V. Current rating varies by wire gauge. This connector is RoHS3 compliant and has MSL 1 (unlimited).

0430451210 Quick Information

Product Type: Header Connector
Series: Micro-Fit 3.0
Canonical Name: Molex 0430451210 12-Position 3.00mm Pitch SMD Right Angle Header
Subcategory: Shrouded Header

0430451210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

0430451210 Estimated Pricing

Qty Low High
1+ $6.22 $6.22
10+ $5.28 $5.28
100+ $4.49 $4.49
200+ $4.90 $4.90
400+ $4.66 $4.66
600+ $4.53 $4.53
1,000+ $4.37 $4.37
1,400+ $4.27 $4.27
2,000+ $4.16 $4.16

Estimated market price range - modelled values for guidance only, not live distributor offers.

0430451210 Features

  • 12 positions in 2 rows.
  • 3.00mm pitch for compact designs.
  • Surface mount right angle orientation.
  • Shrouded 4-wall housing with locking ramp.
  • Solder retention for reliable assembly.

0430451210 Applications

  • Board-to-cable/wire interconnection applications.
  • Power and signal distribution in electronics.
  • Automotive and industrial control systems.
  • Consumer electronics requiring compact connectors.

0430451210 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

12 positions in 2 rows.

What is the pitch?

3.00mm (0.118 inches).

What is the voltage rating?

600V.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-40°C to 105°C.

What is the contact finish?

Tin with 15.0µin thickness.

Is the connector shrouded?

Yes, it has a shrouded 4-wall design with locking ramp.
