Mfr Part #:

0430450819

Mfr Name: Molex

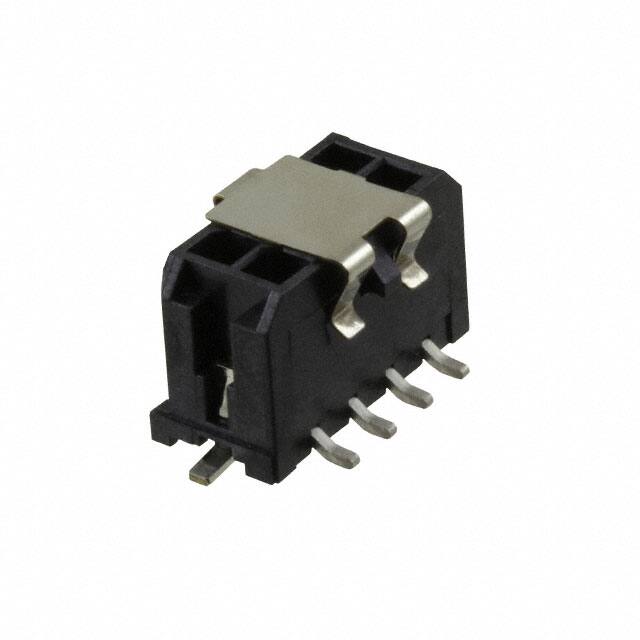

Molex 0430450819 is an 8 position, 2 row, 3.00mm pitch shrouded header with male pins for board-to-cable/wire applications. Surface mount with solder termination.

✓ Total Stock: 175 pcs

$ Price Range: $3.28 - $4.89

0430450819 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Husky International Electronic ✓ Non-Authorised Inventory information	175 pcs On Request	175 pcs	On Request	1	On Request	On Request	N/A	On Request	On Request

0430450819 Description

Short technical summary and product information.

The Molex 0430450819 is a shrouded header connector from the Micro-Fit 3.0 family. It features 8 positions in a 2-row configuration with a 3.00mm (0.118") pitch and a row spacing of 3.00mm. The connector is designed for board-to-cable/wire applications and includes a locking ramp fastening type for secure mating.

This header accepts male pin contacts made of brass with a tin finish of 15.0µin (0.38µm). The insulation is black liquid crystal polymer (LCP) glass filled, rated UL94 V-0, with a height of 9.91mm (0.390"). Solder retention features are included.

Rated for 8A current and 600V voltage, the connector operates over a temperature range of -40°C to 105°C. It is surface mount with solder termination.

0430450819 Quick Information

Product Type: Header, Male Pin

Series: Micro-Fit 3.0

Canonical Name: Molex 0430450819 Micro-Fit 3.0 Header, Male Pin, 8 Position, 2 Row, Solder, Surface Mount

Subcategory: Shrouded Header

0430450819 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): MSL 1 Unlimited

REACH Status: REACH Unaffected

0430450819 Estimated Pricing

Qty	Low	High
1+	$4.89	$4.89
10+	$4.16	$4.16
100+	$3.53	$3.53
200+	$3.86	$3.86
400+	$3.79	$3.79
600+	$3.57	$3.57
1,000+	$3.44	$3.44
1,400+	$3.45	$3.45
2,000+	$3.28	$3.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

0430450819 Features

Shrouded 4-wall header for secure mating.
Locking ramp fastening type for positive retention.
Solder retention feature for reliable PCB mounting.
Wide operating temperature range -40°C to 105°C.
UL94 V-0 rated glass filled LCP insulation.

0430450819 Applications

Suitable for board-to-cable/wire interconnections.
Power and signal routing in consumer electronics.
Industrial control and automation equipment wiring.
Automotive interior harness connections.
General purpose medium-power interconnect systems.

0430450819 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the 0430450819 have?

8 positions, 2 rows, all positions loaded.

What is the pitch of this Molex header?

3.00mm (0.118 inches).

What is the current rating of the 0430450819?

8 Amps.

What is the voltage rating?

600 Volts.

How is this header mounted?

Surface mount, with solder termination.

What is the operating temperature range?

-40°C to 105°C.

What material is the insulator made of?

Liquid Crystal Polymer (LCP), glass filled, rated UL94 V-0.

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	15.0µin (0.38µm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	8A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Black
Insulation Height	9.91mm (0.390")
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Lead Spacing	3.0 mm
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	3.00mm (0.118")
Row Spacing	0.118" (3.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600V
