| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
66 pcs
|
66 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

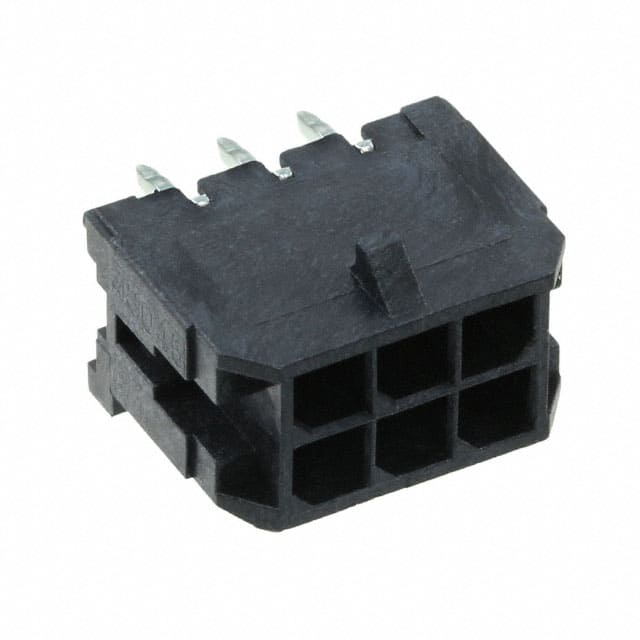

The Molex 0430450612 is a 6-position, 2-row shrouded header designed for board-to-cable/wire applications. It features a 3.00mm pitch and 3.00mm row spacing, with a through hole mounting style and kinked pin solder termination for secure PCB attachment. The header is fully shrouded with a 4-wall design and includes a locking ramp fastening system for reliable mating. The insulation is made of black liquid crystal polymer (LCP) with glass filling, rated UL94 V-0 for flammability. Contacts are square brass pins with a tin finish (2.54µm thickness) and a contact length of 3.18mm. The connector is rated for 8A current and 600V voltage, with an operating temperature range of -40°C to 105°C. A board guide feature aids in alignment during assembly.
The pitch is 3.00mm.
It has 6 positions, all loaded, in 2 rows.
The current rating is 8A.
The voltage rating is 600V.
Through hole mounting with kinked pin solder termination.
-40°C to 105°C.
Yes, it is a shrouded - 4 wall design.
