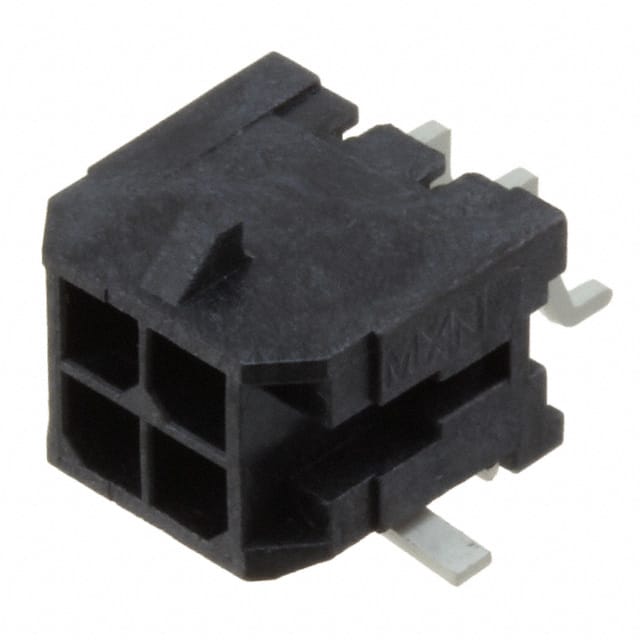

0430450410

The Molex 0430450410 is a 4-position header connector designed for board-to-cable/wire applications. It features a 2-row configuration with a 3.00mm pitch and 3.00mm row spacing, providing a compact interconnection solution. The connector is shrouded with a 4-wall design, offering protection for the male pin contacts. It is configured for surface mount right angle mounting, with solder termination. The contact material is brass alloy with a tin finish of 0.38µm thickness. The insulator is made of liquid crystal polymer (LCP) glass filled, black in color, with an insulation height of 7.37mm. The fastening type is a locking ramp for secure mating. Operating temperature range is -40°C to 105°C. It is rated for 600V voltage and current varies by wire gauge. The material flammability rating is UL94 V-0. Features include solder retention for reliable soldering. This connector is typically used in applications requiring a reliable, space-saving interconnection between a PCB and cable assembly. The surface mount right angle orientation allows for low-profile connections. The shrouded design protects pins during handling and mating. The locking ramp ensures secure engagement. The connector is RoHS3 compliant (unverified) and has a moisture sensitivity level of 1 (unverified).
