| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
917 pcs
|
917 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

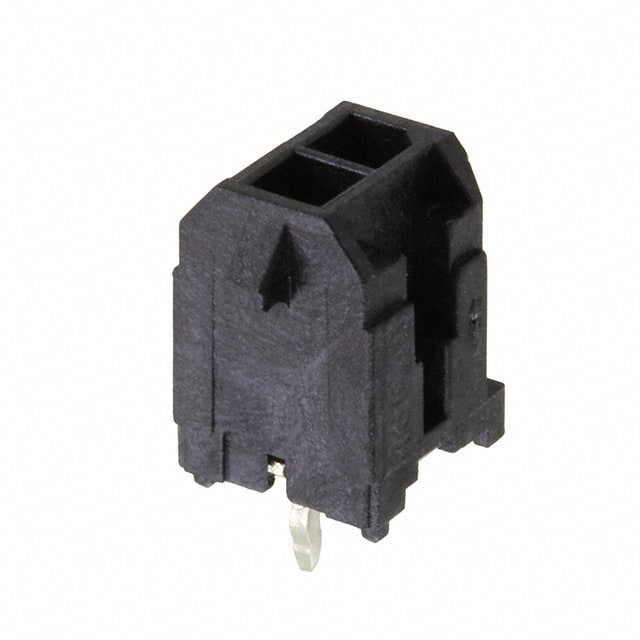

The Molex 0430450212 is a 2-position, 2-row male pin header connector designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a locking ramp for secure mating.
The connector has a row spacing of 3.00mm and uses through hole termination with kinked pins for solder. Contacts are made of brass with a tin finish (2.54µm thickness). The insulation is black liquid crystal polymer (LCP) with glass fill, rated UL94 V-0 for flammability.
It is rated for 8A current and 600V voltage. The insulation height is 9.91mm and contact length is 3.18mm. A board guide feature aids alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.89 | $0.89 |
| 10+ | $0.75 | $0.75 |
| 100+ | $0.64 | $0.64 |
| 500+ | $0.57 | $0.57 |
| 3,168+ | $0.50 | $0.50 |
| 6,336+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions, 2 rows.
8A.
600V.
Through hole.
3.00mm.
Tin, 2.54µm thickness.
Liquid Crystal Polymer (LCP), glass filled, UL94 V-0.
