| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
504 pcs
|
504 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

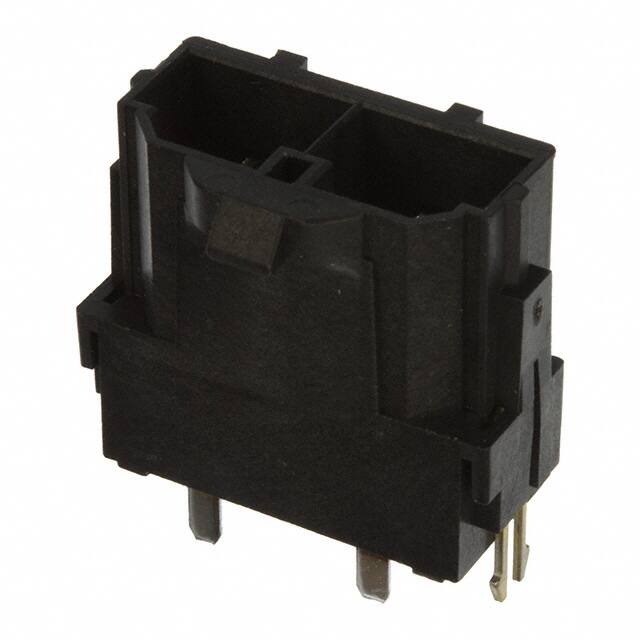

The Molex 0428192212 is a 2-position, single-row header with a 10.00mm pitch, designed for board-to-cable/wire connections. It features through hole mounting with solder termination and male blade contacts made of copper zirconium alloy with a tin finish (2.54µm thickness). The header is fully shrouded with a 4-wall design and includes a locking ramp for secure mating, plus a board lock feature for reliable PCB retention. The insulation is black polyamide (PA46) with glass filling, rated UL94 V-0 for flammability. The contact length is 3.50mm and the insulation height is 21.00mm. All 2 positions are loaded. This header is suitable for power and signal applications requiring a robust, polarized connection.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.58 | $5.58 |
| 52+ | $4.22 | $4.22 |
| 104+ | $4.02 | $4.02 |
| 520+ | $3.59 | $3.59 |
| 1,040+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 2 positions in a single row.
The pitch is 10.00mm (0.394 inches).
Through hole mounting with solder termination.
Tin finish with a thickness of 2.54µm (100.0µin).
Black polyamide (PA46) with glass filling, rated UL94 V-0.
Yes, it features a locking ramp for secure mating.
Board to cable/wire style.
