| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Hold Current | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| SVHC Present | |
| Tape & Reel | |
| Thickness | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Width |

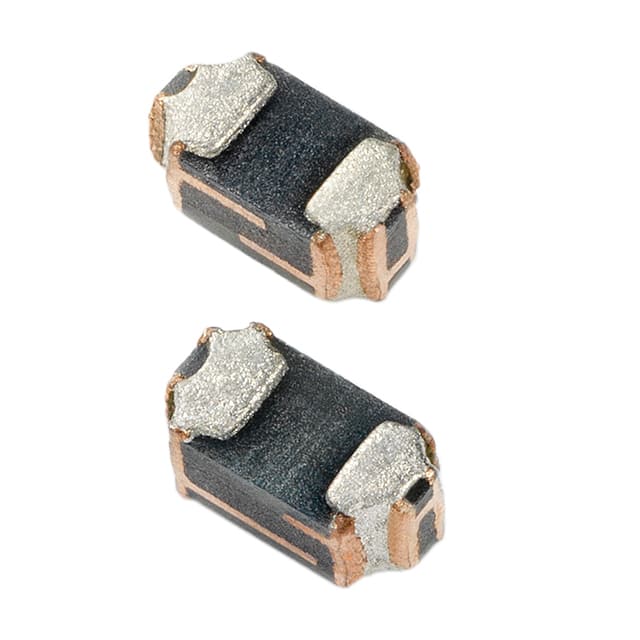

The Littelfuse 0402L035SLKR is a polymeric PTC resettable fuse designed for overcurrent protection in compact electronic circuits. It offers a hold current of 350mA and a trip current of 700mA, with a maximum voltage rating of 6V. The device trips in 100ms under fault conditions and exhibits a post-trip resistance of 700mΩ.
This surface mount component is housed in an 0402 (1005 metric) concave package, measuring 1.00mm x 0.50mm x 0.60mm. It operates over a temperature range of -40°C to 85°C, making it suitable for a wide variety of environments.
The polymeric PTC technology provides resettable protection, eliminating the need for fuse replacement after a fault event. The surface mount package is compatible with standard high-volume SMT assembly processes.
350mA.
6V DC.
100ms typical.
Surface mount 0402 (1005 metric) concave package.
700mA typical (2x hold current).
-40°C to 85°C.
700mΩ typical.
