| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
138 pcs
$0.08
|
138 pcs |
$0.08
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Dissipation Factor | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Termination Style | |
| Thickness (Max) | |
| Tolerance | |
| Voltage | |
| Width |

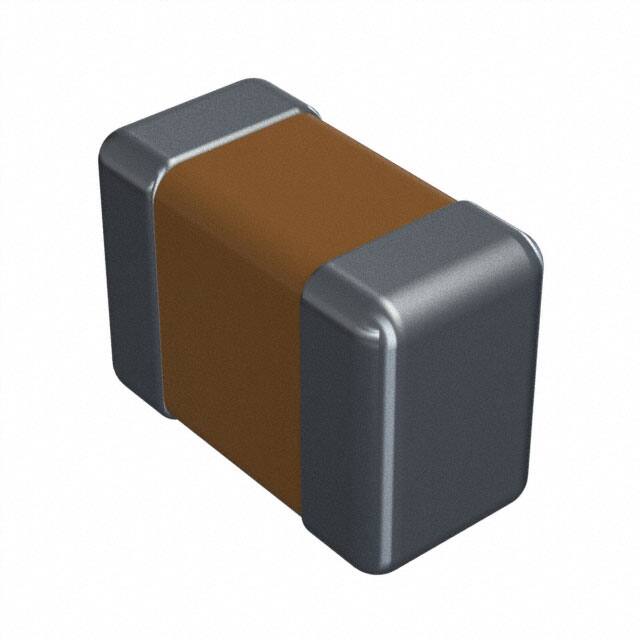

The Kyocera AVX 04026D475MAT2A is a multilayer ceramic capacitor (MLCC) with X5R dielectric, offering 4.7 µF capacitance and a 6.3V DC voltage rating. This part is housed in a compact 0402 (1005 metric) surface mount package measuring 1.00mm x 0.50mm with a maximum thickness of 0.71mm. The capacitor features a tolerance of ±20% and an operating temperature range of -55°C to +85°C.
X5R dielectric is an EIA Class II dielectric suitable for general-purpose applications such as decoupling and filtering. The capacitance variation over the temperature range is within ±15% of the value at 25°C. For this part, the dissipation factor is ≤ 12.5% for the 6.3V rating. The insulation resistance is a minimum of 10,000 MΩ or 500 MΩ-µF, whichever is less. The dielectric strength test is performed at 250% of the rated voltage for 1 to 5 seconds.
The component uses plated nickel and tin terminations for reliable soldering and is available on 13-inch reels. This capacitor is designed for surface mount assembly and is well-suited for space-constrained electronic circuits.
The capacitance is 4.7 µF with a voltage rating of 6.3V DC.
The tolerance is ±20%.
The dielectric is X5R, which provides a capacitance variation within ±15% over the operating temperature range.
The package is 0402 (1005 metric) and the mounting type is surface mount (MLCC).
The operating temperature range is -55°C to +85°C.
