| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
798 pcs
|
798 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination |

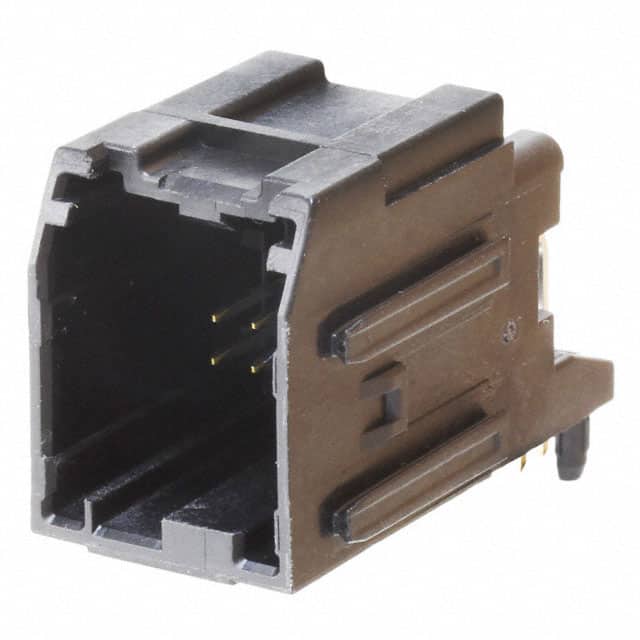

The Molex 0346916080 is a Stac64 series shrouded header designed for board-to-cable/wire applications. It features 8 male pin contacts arranged in 2 rows with a 2.54mm pitch and row spacing. The connector is mounted through hole with a right-angle orientation, making it suitable for compact PCB layouts where space is limited.
The header uses cartridge brass contacts with a tin finish and square contact shape. The insulation is black glass-filled syndiotactic polystyrene (SPS) with a height of 22.05mm. A latch holder fastening type and board guide feature ensure secure mating and alignment. The operating temperature range is -40°C to 105°C, and the part is packaged in a tray.
The pitch is 2.54mm (0.100").
It has 8 positions in 2 rows.
Through hole, right angle.
-40°C to 105°C.
Yes, it has a shrouded 4-wall design.
Latch holder.
