Mfr Part #:

0346909202

Name: 0346909202
Brand: Molex
SKU: 0346909202

Mfr Name: Molex

Description:

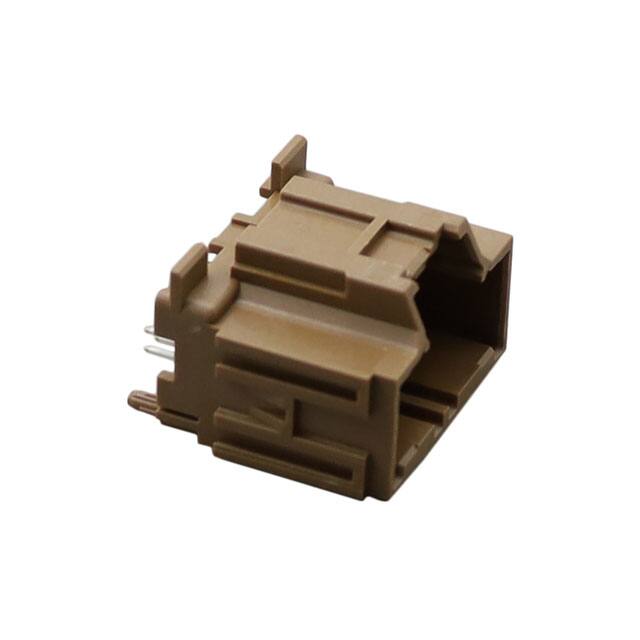

STAC64 VERT HDR 20 CKT BRN POL C

Stock on Request

0346909202 Description

Short technical summary and product information.

STAC64 VERT HDR 20 CKT BRN POL C

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Molex
Connector Type	Header
Contact Finish	Tin
Contact Length	0.117" (2.97mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Brown
Insulation Height	0.886" (22.50mm)
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.100" (2.54mm)
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	500VDC
