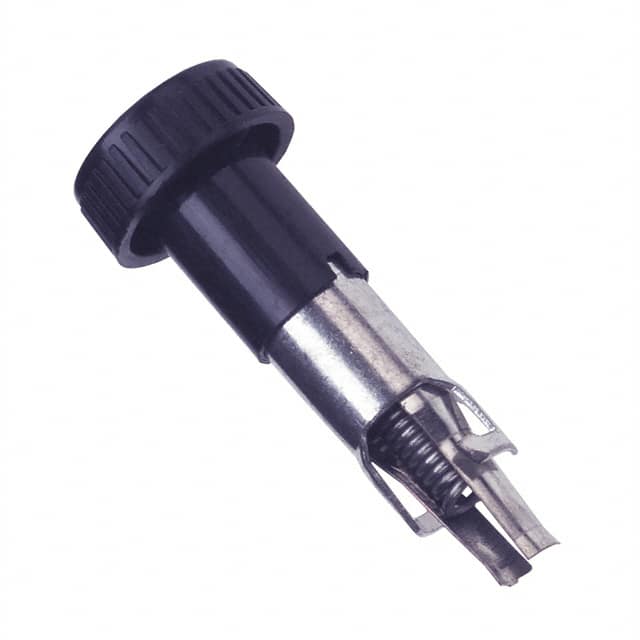

03455LF1HX020 The Littelfuse Inc. 03455LF1HX020 is a black, finger-grip fuse holder knob designed for panel mounting. It is compatible with 3AB, 3AG, 5x20mm, or 2AG fuses.
Mfr Part #:

03455LF1HX020

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse Inc. 03455LF1HX020 is a black, finger-grip fuse holder knob designed for panel mounting. It is compatible with 3AB, 3AG, 5x20mm, or 2AG fuses.
Stock on Request

03455LF1HX020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Body Material
Contact Resistance
For Use With
Ingress Protection
Insulation Resistance
Mounting Type
SVHC Present
Terminal Style

03455LF1HX020 Description

Short technical summary and product information.

The Littelfuse Inc. 03455LF1HX020 is a shock-safe, panel-mount enclosed fuse holder knob. Designed to eliminate the possibility of electrical shock as defined in IEC standards 60127-6, this knob is compatible with 3AB, 3AG, 5x20mm, and 2AG fuse sizes when used with the appropriate fuseholder body.



This finger-grip style knob features a fuse extractor function and is constructed from durable, black glass-filled thermoplastic (UL94 V-0). It offers design flexibility and permits inventory reduction by allowing interchangeability with different fuse sizes. The knob incorporates a spring-loaded, locking mechanism that provides an anti-tease feature, preventing accidental circuit interruption and ensuring it will not vibrate loose.



Mounting is designed for panels with thicknesses ranging from 0.032" to 0.310" for low/high profile styles and 0.012" to 0.360" for quick mount styles. The fuseholder operates within an ambient temperature range of -40°C to +85°C and offers ingress protection up to IP52 when specified with the 'NP' suffix for dust and dripping water resistance.



This accessory is part of the 345 Series and is intended for use with Littelfuse fuseholders, providing a secure and safe method for fuse access and replacement.

03455LF1HX020 Quick Information

Product Type: Fuse Holder Knob
Series: 345 Series
Canonical Name: Littelfuse Inc. 03455 Series Shock-Safe Panel Mount Enclosed Fuse Holder Knob
Subcategory: Fuse Holder Knob

03455LF1HX020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

03455LF1HX020 Features

  • Shock-safe design per IEC standards.
  • Accepts multiple fuse sizes (3AB, 3AG, 5x20mm, 2AG).
  • Finger-grip knob with fuse extractor.
  • Anti-tease feature prevents accidental interruption.
  • Panel mount design for flexible installation.

03455LF1HX020 Applications

  • Use with 345 Series fuseholders.
  • Ideal for reducing inventory needs.
  • Suitable for various industrial controls.
  • Enhances safety in electrical enclosures.

03455LF1HX020 FAQs

5 frequently asked questions generated from this part’s specifications.
What fuse sizes are compatible with this fuse holder knob?

This fuse holder knob is compatible with 3AB, 3AG, 5x20mm, and 2AG fuse sizes, depending on the knob selected.

What is the operating temperature range for this fuse holder knob?

The operating temperature range is -40°C to +85°C.

What is the body material of this fuse holder knob?

The body material is black glass-filled thermoplastic with a UL 94V0 flammability rating.

What are the available ingress protection ratings?

Ingress protection ratings include IP40 and IP52.

What mounting torque can the threaded style fuseholders withstand?

Threaded style fuseholders withstand 15 in-lb mounting torque.
