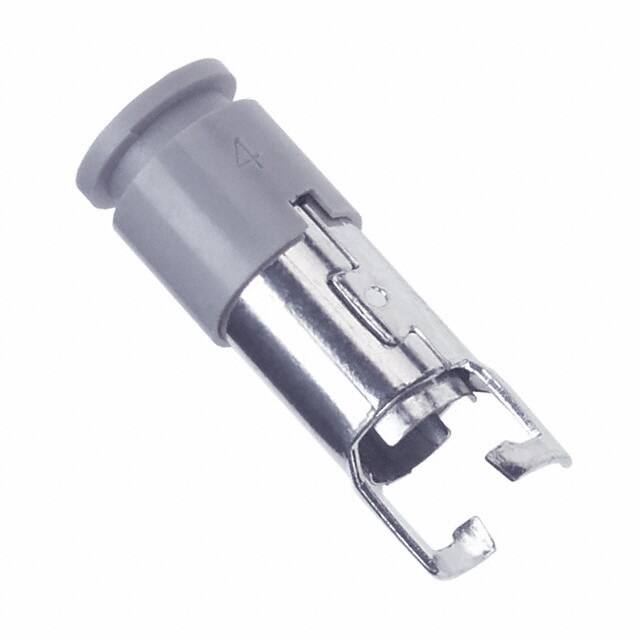

03453LS1HX020 The Littelfuse 03453LS1HX020 is a 345 Series shock-safe panel mount fuse holder knob designed for 3AG fuses. It offers a 20A current rating and 250V voltage rating.
Mfr Part #:

03453LS1HX020

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse 03453LS1HX020 is a 345 Series shock-safe panel mount fuse holder knob designed for 3AG fuses. It offers a 20A current rating and 250V voltage rating.
Stock on Request

03453LS1HX020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Body Material
Contact Resistance
Current Rating
For Use With
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
SVHC Present
Voltage Rating

03453LS1HX020 Description

Short technical summary and product information.

The Littelfuse 03453LS1HX020 is a component from the 345 Series of shock-safe panel mount enclosed fuse holders. This specific part is a knob designed for use with 3AG fuses, featuring a screwdriver slot for operation.



This fuse holder knob is constructed from durable glass-filled thermoplastic, available in gray, blue, or black, and meets UL94 V-0 flammability standards. It is designed to eliminate the possibility of electrical shock, adhering to IEC standards 60127-6. The universal fuseholder body accepts various fuse sizes, including 3AB, 3AG, 5x20mm, and 2AG, depending on the knob selected, allowing for inventory reduction and knob interchangeability.



Key electrical specifications include an insulation resistance of 10,000 megohms minimum at 500 VDC and a contact resistance of less than 0.005 ohm average at currents up to 1 ampere. The operating temperature range is from -40°C to +85°C. Mounting options accommodate panel thicknesses from 0.012" to 0.360" depending on the mounting style.



The fuse holder offers ingress protection ratings of IP40 and IP52, providing protection against solid objects and dust/dripping water respectively. It is rated for a current of 20A and a voltage of 250V (AC/DC). Terminal styles include dual-purpose for soldering or quick connect, as well as NEMA/DIN quick connect options.

03453LS1HX020 Quick Information

Product Type: Fuse Holder Knob
Series: 345 Series
Canonical Name: Littelfuse 345 Series Shock-Safe Panel Mount Enclosed Fuse Holder Knob
Subcategory: Fuse Holder Knobs

03453LS1HX020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

03453LS1HX020 Features

  • Shock-safe panel mount fuse holder knob.
  • Accepts 3AB, 3AG, 5x20mm, 2AG fuses.
  • Rated for 20A current and 250V voltage.
  • Operating temperature range -40°C to +85°C.
  • IP40 and IP52 ingress protection.

03453LS1HX020 Applications

  • Ideal for circuit protection applications.
  • Suitable for industrial control panels.
  • Used in equipment requiring shock safety.
  • Versatile for various fuse size needs.

03453LS1HX020 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 03453LS1HX020?

20A

What is the voltage rating?

250V AC and 250V DC

What is the insulation resistance?

10,000 megohm minimum at 500 VDC

What is the contact resistance?

Less than 0.005 ohm average at currents up to 1 ampere

What is the operating temperature range?

-40°C to +85°C

What is the ingress protection rating?

IP40 standard; IP52 available on parts ending with NP

What mounting styles are available and what panel thickness ranges do they support?

Threaded styles: 0.032" to 0.310"; quick mount: 0.012" to 0.360"; rear mount: 0.012" to 0.260"
