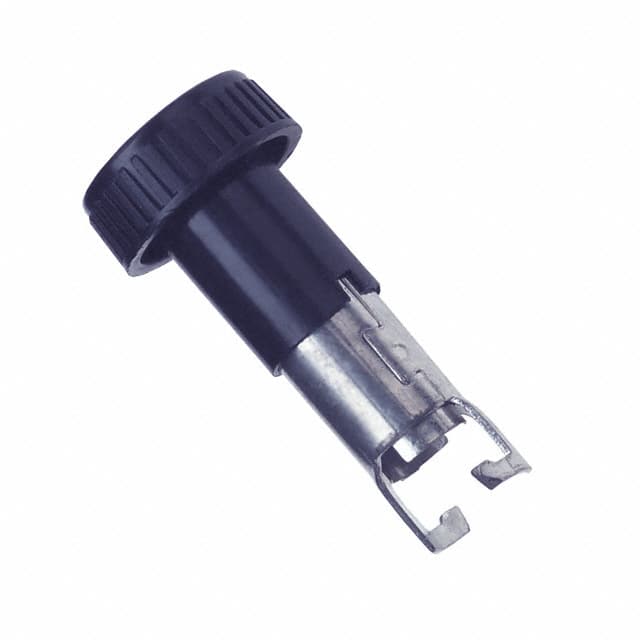

03453LF1HX020 Littelfuse Inc. 03453LF1HX020 is a black fingergrip fuseholder knob designed for 3AG fuses. It offers shock-safe panel mounting and compatibility with the 345 series fuseholders.
Mfr Part #:

03453LF1HX020

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse Inc. 03453LF1HX020 is a black fingergrip fuseholder knob designed for 3AG fuses. It offers shock-safe panel mounting and compatibility with the 345 series fuseholders.
Stock on Request

03453LF1HX020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Body Material
Contact Resistance
For Use With
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
Terminal Style

03453LF1HX020 Description

Short technical summary and product information.

The Littelfuse Inc. 03453LF1HX020 is a black, fingergrip style fuseholder knob designed for use with 3AG, 3AB, 5x20mm, and 2AG fuses, depending on the knob selected. This knob is part of the 345 Series of shock-safe, panel-mount enclosed fuseholders, designed to meet IEC standards for electrical shock prevention.



Key electrical specifications include a minimum insulation resistance of 10,000 megohms at 500 VDC and a contact resistance of less than 0.005 ohms average at currents up to 1 ampere. The operating temperature range for this component is -40°C to +85°C.



The knob material is glass-filled thermoplastic (UL94 V-0), ensuring durability. It features a fuse extractor function and a spring-loaded locking mechanism that provides an anti-tease feature, preventing accidental circuit interruption. The body material is also black glass-filled thermoplastic (UL 94V0).



Mounting options accommodate various panel thicknesses, with specific ranges for threaded, low profile, high profile, and quick mount styles. Terminal styles include dual-purpose for soldering or quick connect, as well as NEMA and NEMA/DIN quick connect options. The ingress protection rating is IP40, meaning it is protected from solid objects greater than 1 millimeter but not from liquids.

03453LF1HX020 Quick Information

Product Type: Fuseholder Knob
Series: 345
Canonical Name: Littelfuse Inc. 03453LF1HX020 Fuseholder Knob
Subcategory: Fuseholder Accessories

03453LF1HX020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

03453LF1HX020 Features

  • Shock-safe panel mount fuseholder knob.
  • Accepts 3AG, 3AB, 5x20mm, 2AG fuses.
  • Black fingergrip style with fuse extractor.
  • Insulation resistance: 10,000 MΩ min @ 500 VDC.
  • Operating temperature: -40°C to +85°C.

03453LF1HX020 Applications

  • Used in 345 Series fuseholder systems.
  • Suitable for panel mount applications.
  • Provides electrical shock protection.
  • Enhances circuit safety and reliability.

03453LF1HX020 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the insulation resistance of the 03453LF1HX020?

10,000 MΩ minimum at 500 VDC.

What is the contact resistance?

Less than 0.005 Ω average at currents up to 1 ampere.

What is the operating temperature range?

-40°C to +85°C.

What ingress protection does this knob offer?

IP40 standard; IP52 for parts ending with 'NP' suffix.

What materials are used in construction?

Body: black glass-filled thermoplastic (UL94 V-0). Knob: glass-filled thermoplastic. Hex nut: black glass-filled thermoplastic.

What panel thickness does it support?

Threaded styles: 15 in-lb torque. Low/High profile: 0.032" min/0.310" max. Quick mount: 0.012" min/0.360" max. Rear mount: 0.012" min/0.260" max.

What terminal styles are available?

.187" dual purpose, .187" NEMA Quick-Connect, .250" NEMA/DIN Quick-Connect.
