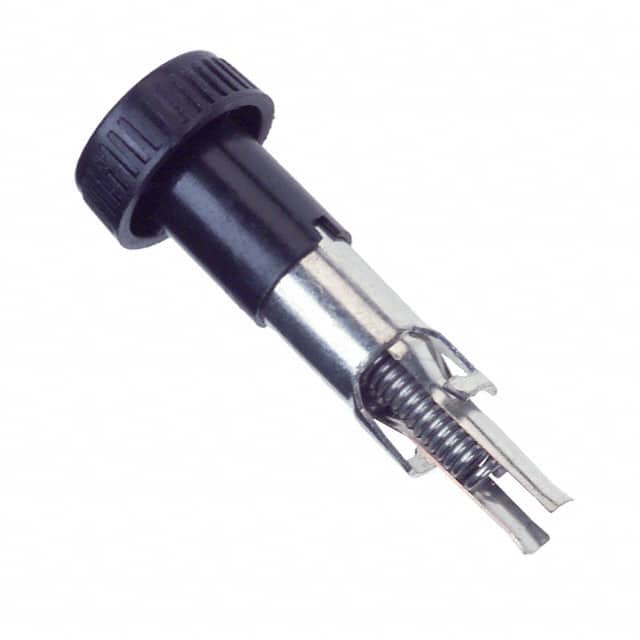

03452LF1HX020 The Littelfuse Inc. 03452LF1HX020 is a black fuseholder knob designed for use with the 345 series fuseholders. It features a finger-grip design for easy operation.
Mfr Part #:

03452LF1HX020

Mfr Name: Littelfuse Inc.
Littelfuse Inc.
The Littelfuse Inc. 03452LF1HX020 is a black fuseholder knob designed for use with the 345 series fuseholders. It features a finger-grip design for easy operation.
Stock on Request

03452LF1HX020 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Body Material
Contact Resistance
For Use With
Ingress Protection
Insulation Resistance
Mounting Type
Operating Temperature
Terminal Style

03452LF1HX020 Description

Short technical summary and product information.

This Littelfuse Inc. 03452LF1HX020 is a black fuseholder knob, part of the 345 series. It is designed for use with various fuseholder bodies, accepting 3AB, 3AG, 5x20mm, and 2AG fuse sizes depending on the knob selected. This design allows for inventory reduction and knob interchangeability.



The knob is constructed from black glass-filled thermoplastic (UL94V-0) and features a finger-grip, fuse extractor type design. It incorporates a spring-loaded, locking mechanism that provides an anti-tease feature, preventing accidental circuit interruption and ensuring the knob does not vibrate loose. This knob is compatible with fuseholders designed to eliminate the possibility of electrical shock, as defined in IEC standards 60127-6.



Electrical specifications include an insulation resistance of 10,000 megohms minimum at 500 VDC and a contact resistance of less than 0.005 ohm average at currents up to 1 ampere. The operating temperature range is -40°C to +85°C. Mounting options vary by fuseholder style, with threaded styles withstanding 15 in.-lb. of torque and specific panel thickness ranges for low profile, high profile, quick mount, and rear mount configurations.



This accessory is suitable for applications requiring secure and shock-safe fuse access. The finger-grip knob also aids in quick fuse size identification.

03452LF1HX020 Quick Information

Product Type: Fuseholder Knob
Series: 345
Canonical Name: Littelfuse Inc. 03452LF1HX020 Fuseholder Knob

03452LF1HX020 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

03452LF1HX020 Features

  • Black glass-filled thermoplastic construction.
  • Finger-grip, fuse extractor type knob.
  • Provides shock-safe operation.
  • Features an anti-tease mechanism.
  • Compatible with multiple fuse sizes.

03452LF1HX020 Applications

  • Used with 345 series fuseholders.
  • Suitable for shock-safe applications.
  • Facilitates inventory reduction.
  • Enhances knob interchangeability.

03452LF1HX020 FAQs

6 frequently asked questions generated from this part’s specifications.
What fuse sizes are compatible with this fuseholder knob?

The universal fuseholder body accepts 3AB, 3AG, 5x20mm, and 2AG fuse sizes depending on the knob selected.

What is the operating temperature range for this fuseholder knob?

The operating temperature range is -40°C to +85°C.

What is the insulation resistance of the fuseholder?

The insulation resistance is a minimum of 10,000 megohms at 500 VDC.

What is the contact resistance of the fuseholder?

The contact resistance is less than 0.005 ohm average at currents up to 1 ampere.

What materials are used for the fuseholder knob and body?

The knob material is grey, blue, or black glass-filled thermoplastic (UL94 V-0), and the body material is black glass-filled thermoplastic (UL 94V0).

What are the ingress protection ratings for this fuseholder?

The ingress protection ratings are IP40 (protected from solid objects > 1mm, not protected from liquids) and IP52 (protected against dust and dripping water when tilted up to 15º).
